GNSS Spoofing in Modern Shipping: How 16-Element CRPA Antennas Protect Maritime Fleets

Modern shipping and logistics fleets are facing a more complex GNSS threat environment than ever before. In high-risk maritime corridors, GPS jamming and spoofing can disrupt vessel navigation, cause route deviations, and create serious operational and safety risks. A 16-element CRPA antenna offers a practical way to improve resilience against these threats and protect critical navigation systems.

Why GNSS Spoofing Is More Dangerous Than Jamming

GNSS jamming and GNSS spoofing are related, but they are not the same threat.

Jamming blocks or weakens satellite signals, which usually causes a clear loss of positioning. Spoofing is more dangerous because it sends false signals that can trick a receiver into believing it is in the wrong place, at the wrong time, or following the wrong route.

That means a vessel or vehicle may still appear to be operating normally while actually using corrupted navigation data. For shipping operators, fleet managers, and system integrators, this creates a much higher risk than simple signal loss.

Why Commercial Fleets Are Now High-Value Targets

The 2026 security environment has changed the way civilian navigation must be protected. Commercial shipping routes in the Red Sea, Arabian Gulf, and Strait of Hormuz have faced persistent GNSS disruptions. At the same time, logistics fleets, autonomous vehicles, and critical infrastructure systems depend more than ever on accurate positioning and timing.

As electronic warfare techniques spread beyond military use, GNSS protection is becoming a business necessity. Reliable PNT is no longer a premium feature — it is a core requirement for safe operations.

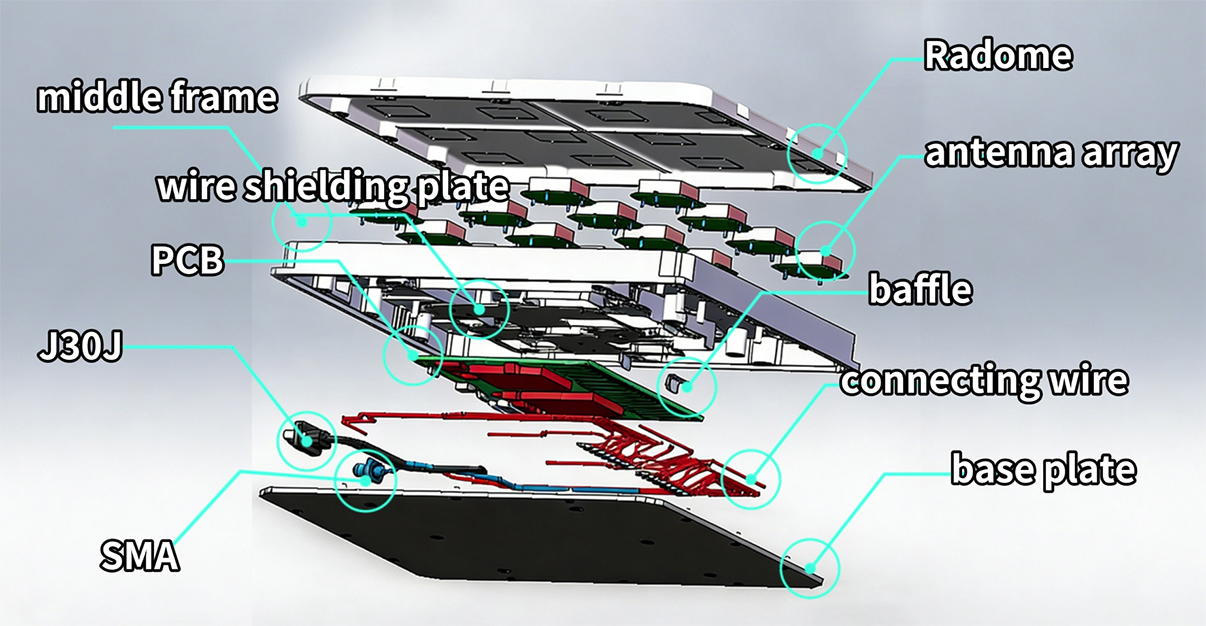

How a 16-Element CRPA Antenna Works

A Controlled Reception Pattern Antenna, or CRPA, uses multiple antenna elements and adaptive beamforming to suppress interference and reject signals coming from hostile directions. A 16-element CRPA antenna provides stronger spatial discrimination than smaller arrays and is better suited for complex RF environments.

The working principle is straightforward:

1. The array receives GNSS signals through multiple spatially separated elements.

2. The system analyzes phase and amplitude differences between the elements.

3. It forms nulls in the direction of jammers or suspicious emitters.

4. Valid satellite signals are preserved and combined, while hostile signals are suppressed.

This makes CRPA especially useful when the threat is not just signal blocking, but false signal injection.

Why 16 Elements Matter for Maritime Navigation

For simple environments, smaller arrays may be enough. But modern maritime operations often take place in congested and contested RF environments where multiple interference sources can appear at the same time.

A 16-element CRPA antenna is valuable when you need:

• Better resistance to multiple interference sources.

• Stronger null steering in crowded RF conditions.

• More stable performance for ships, fleet vehicles, and mobile platforms.

• Multi-constellation GNSS support across GPS, Galileo, BeiDou, and GLONASS.

For commercial fleets, this gives integrators and buyers a more reliable option when navigation accuracy cannot be compromised.

How CHREDSUN’s Solution Fits the Market

CHREDSUN’s 16-element and dual-16-element CRPA antennas are designed for customers who need more than basic anti-jamming performance. They are a strong fit for maritime navigation, logistics fleets, UAV-related platforms, and other applications where GNSS reliability is critical.

The value is not just the higher element count. It is the ability to support safer GNSS reception in environments where:

• false positions can be injected,

• legitimate signals may be masked,

• multiple interference sources may exist simultaneously,

• and navigation decisions must remain trustworthy under stress.

For B2B buyers, that makes a 16-element CRPA antenna a serious risk-control investment rather than an optional upgrade.

What Buyers Should Ask Before Purchasing

A serious buyer should evaluate more than the antenna datasheet.

• How many simultaneous interference sources can the system handle?

• Which bands and constellations are supported?

• Does the solution help with spoofing resistance, not just jamming suppression?

• How does it integrate with the receiver, INS, ECDIS, or telematics system?

• What testing data and deployment support are available?

• How does performance change on a vessel deck, truck roof, or moving platform?

These questions matter because the real product is not just the antenna. It is the reliability of the full positioning chain.

Testing and Deployment Recommendations

To deploy CRPA successfully, buyers should combine hardware protection with operational procedures.

• Test in realistic RF environments, not only in lab conditions.

• Validate performance on the actual mounting surface and vehicle type.

• Compare GNSS output against independent references where possible.

• Train operators to recognize suspicious position jumps and abnormal route behavior.

• Include spoofing scenarios in fleet risk assessments and navigation drills.

The most effective strategy is layered resilience: antenna-level suppression, receiver-level monitoring, and operational cross-checking.

Conclusion

GNSS spoofing has moved from a theoretical concern to a real operational threat for maritime and logistics fleets. In this environment, 16-element CRPA antennas provide a practical and scalable way to improve navigation resilience, reduce false-position risk, and strengthen operational security.

For shipping companies, fleet operators, and system integrators, the message is simple: if GNSS accuracy matters to your business, spoofing resistance should be part of your procurement standard.
