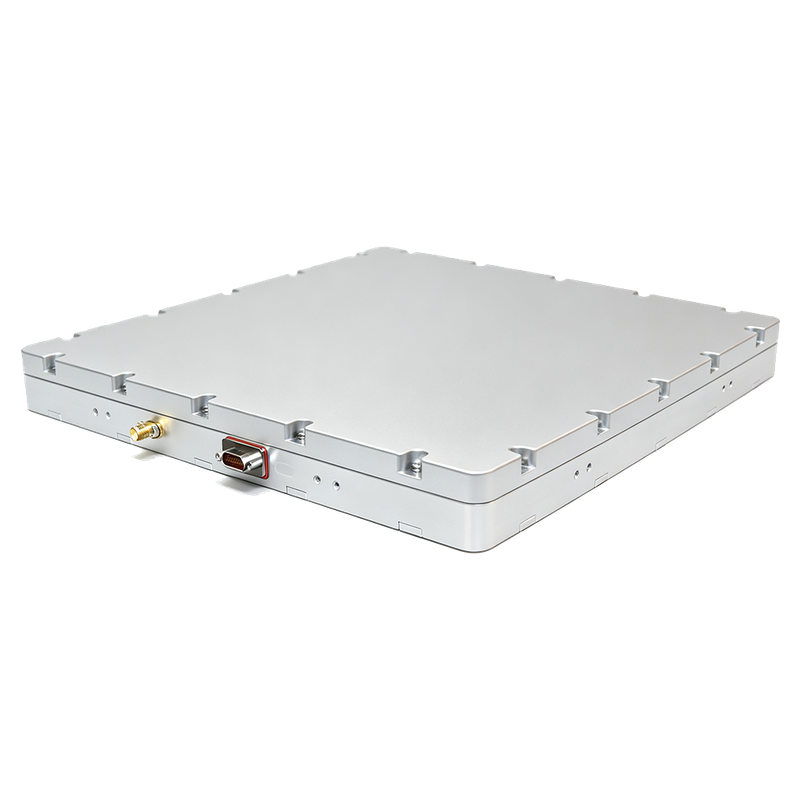

16‑Element GNSS Anti‑Spoofing Antenna with Advanced Anti‑Jamming

Quantity:
Availability:





Inquire Add to Basket

Product Description

the Spoofing Antenna is a new high-performance GNSS antenna that protects navigation systems against both suppression jamming and spoofing, giving users more than traditional anti-jamming-only designs. Built for demanding civilian and commercial platforms, it combines large-array interference mitigation, spoofing awareness and clean RF output in one integrated unit for applications that require stronger navigation reliability.

Product overview

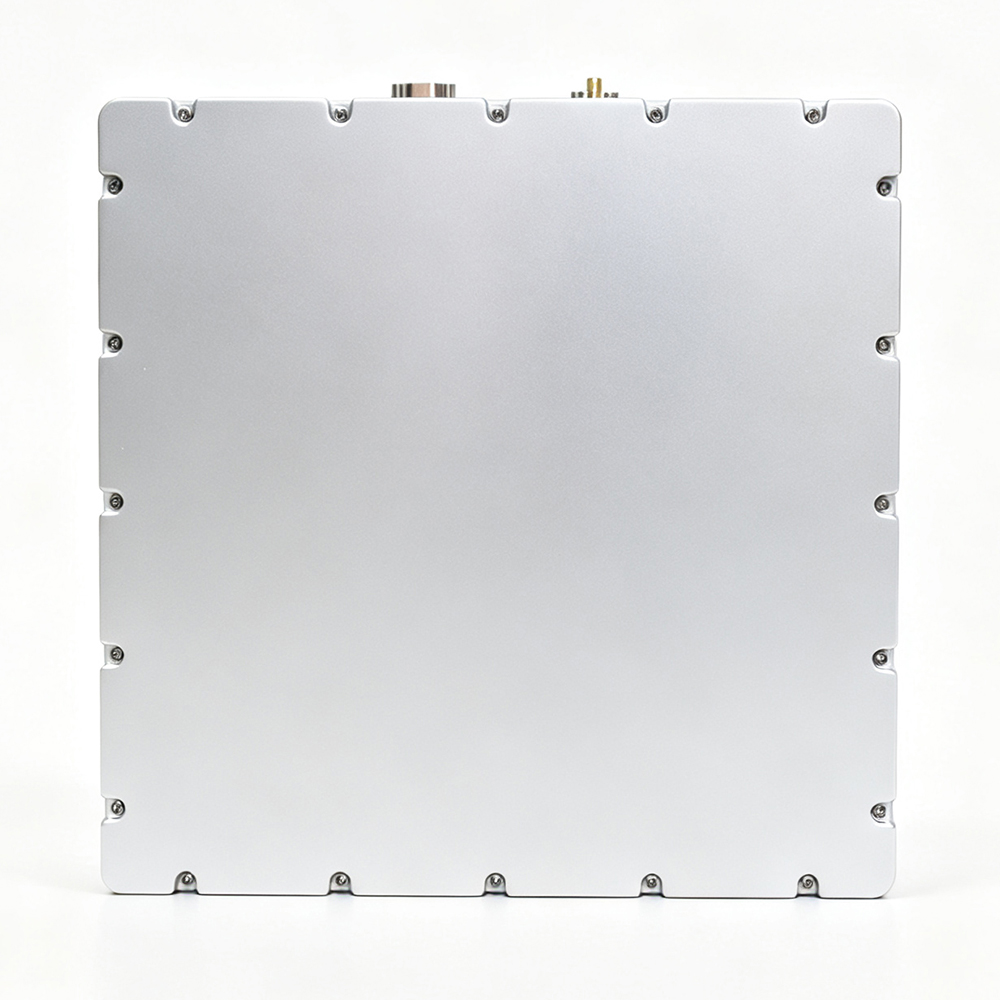

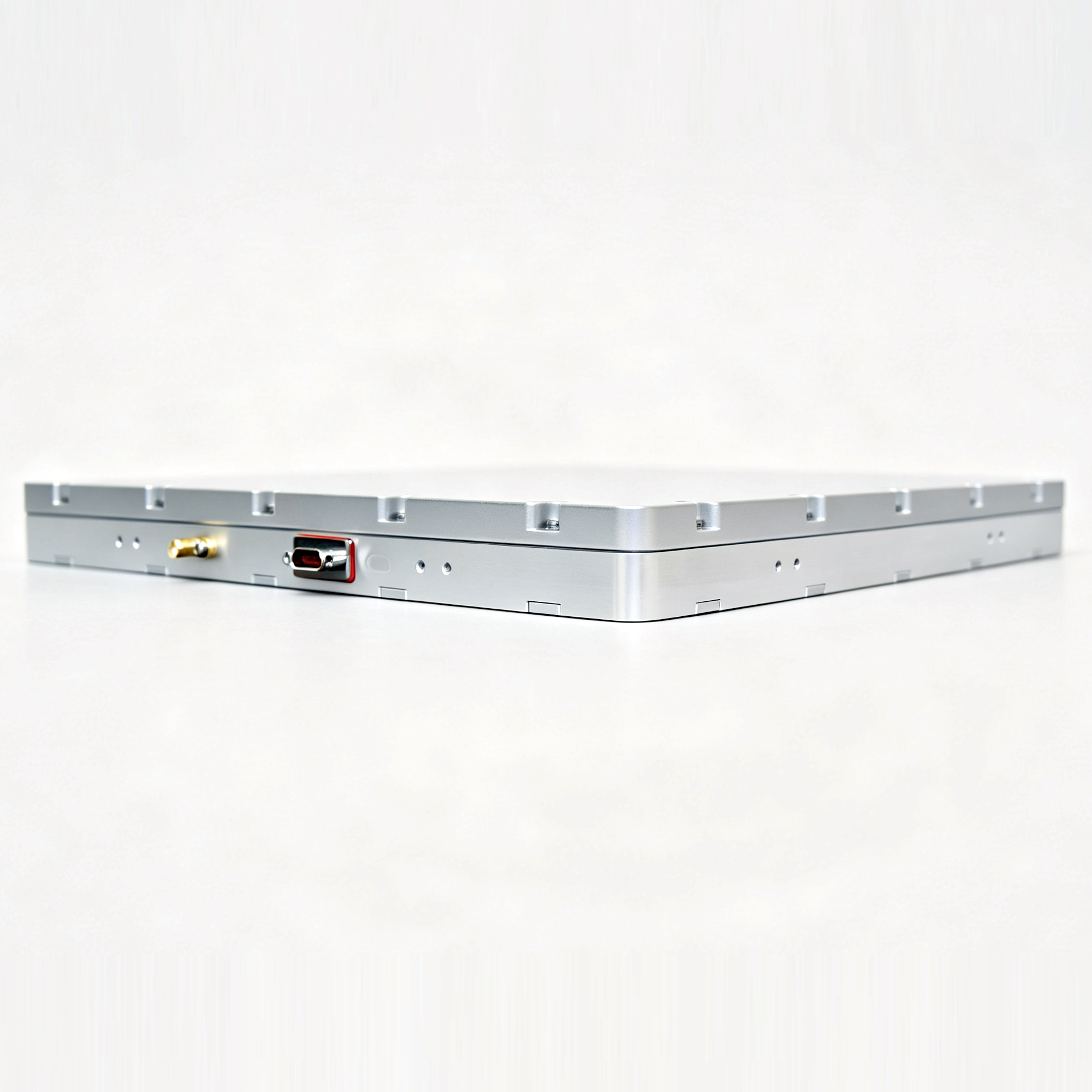

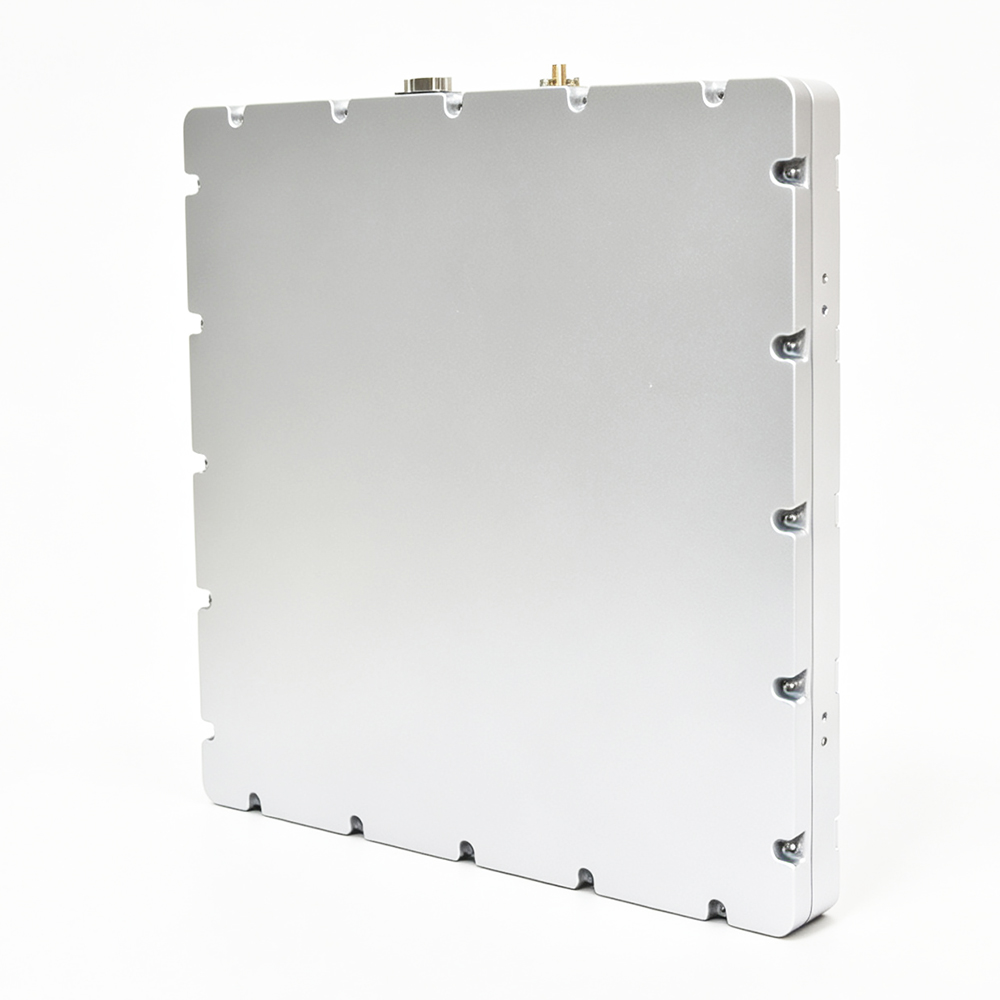

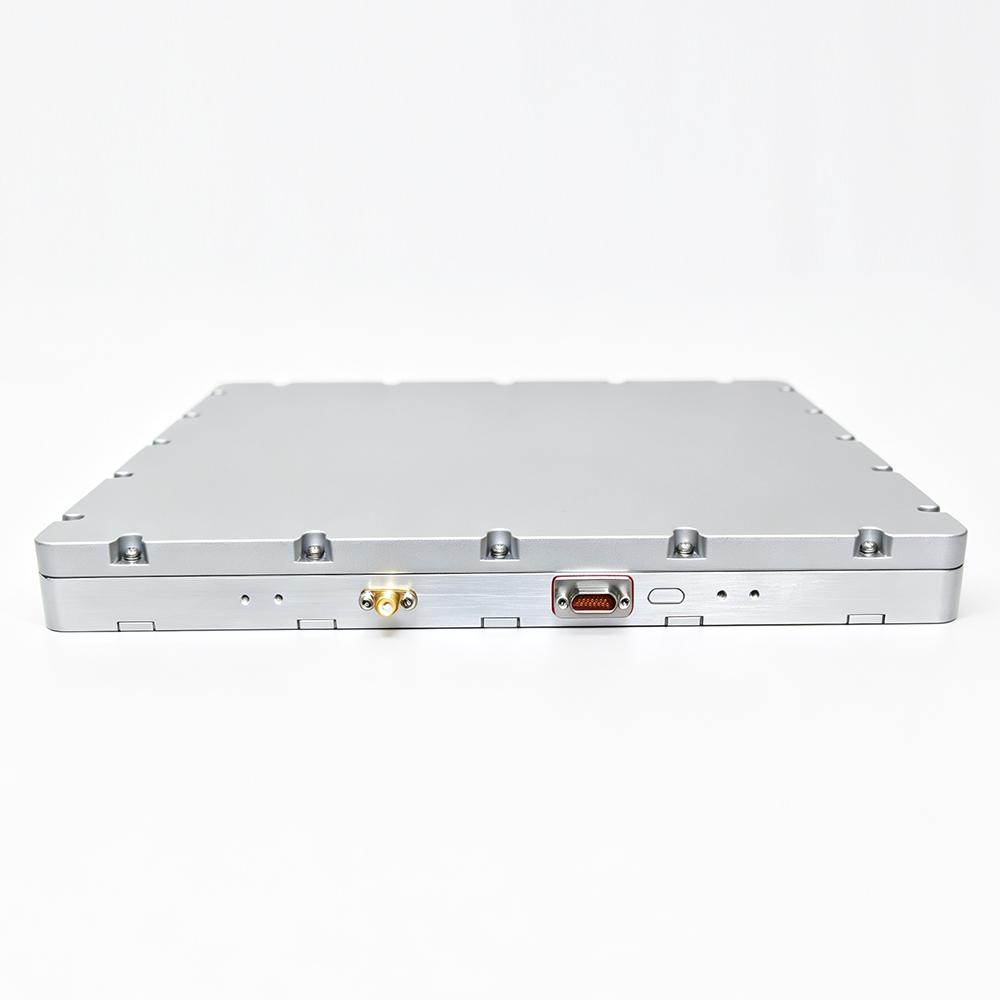

The 16‑Element GNSS Anti‑Spoofing Antenna is a single-frequency anti-jamming and anti-spoofing antenna designed to process BDS B1I/B1C, GPS L1 and Galileo E1 signals while reducing the impact of interference at the receiver front end. Using a 16-element array and advanced signal processing, it can counter suppression jamming, spoofing and mixed suppression-spoofing attacks, making it suitable for platforms that need both signal protection and situational awareness.

A key difference from conventional anti-jamming products is its ability to do more than reject hostile energy. The 16‑Element GNSS Anti‑Spoofing Antenna can also identify spoofing-related threats, report interference conditions in real time and provide support for smarter system decision-making through jamming power, jammer count and spoofing source count outputs.

Key features

16-element array architecture for stronger spatial suppression and front-end protection.

Simultaneous defense against suppression jamming, spoofing and combined interference attacks.

Support for replay spoofing and generative spoofing detection/processing.

Up to 15 suppression jammers can be handled from different directions.

Up to 8 spoofing sources can be identified from different directions.

Integrated receiver optimized for strong interference environments and UAV applications.

Clean RF output after mitigation for downstream GNSS equipment.

Real-time interference awareness for power level, jammer quantity and spoofing source monitoring.

Technical specifications

Signal protection performance

Item	Specification
Product type	Single-frequency high-performance anti-jamming and anti-spoofing antenna
Supported frequency bands	BDS B1I / B1C, GPS L1, Galileo E1
Number of array elements	16 elements
Anti-jamming types	Broadband, narrowband, frequency-sweeping, pulse and combined suppression jamming
Number of jammers handled	1 to 15 sources
Single broadband anti-jamming capability	Interference-to-signal ratio ≥115 dB @ -130 dBm
Seven broadband anti-jamming capability	≥105 dB @ -130 dBm
Fifteen broadband anti-jamming capability	≥90 dB @ -130 dBm
Anti-spoofing types	Replay spoofing, generative spoofing
Number of spoofing sources	Up to 8 sources from different directions
Spoofing handling rule	Spoofing signals with J/S ratio ≥30 dB are classified and processed as suppression jamming
Environment awareness	Real-time reporting of jamming power, jamming count and spoofing source count

RF, receiver and power

Item	Specification
RF output power	-55 dBm to -70 dBm
RF impedance	50 ohms
Output VSWR	≤2.0

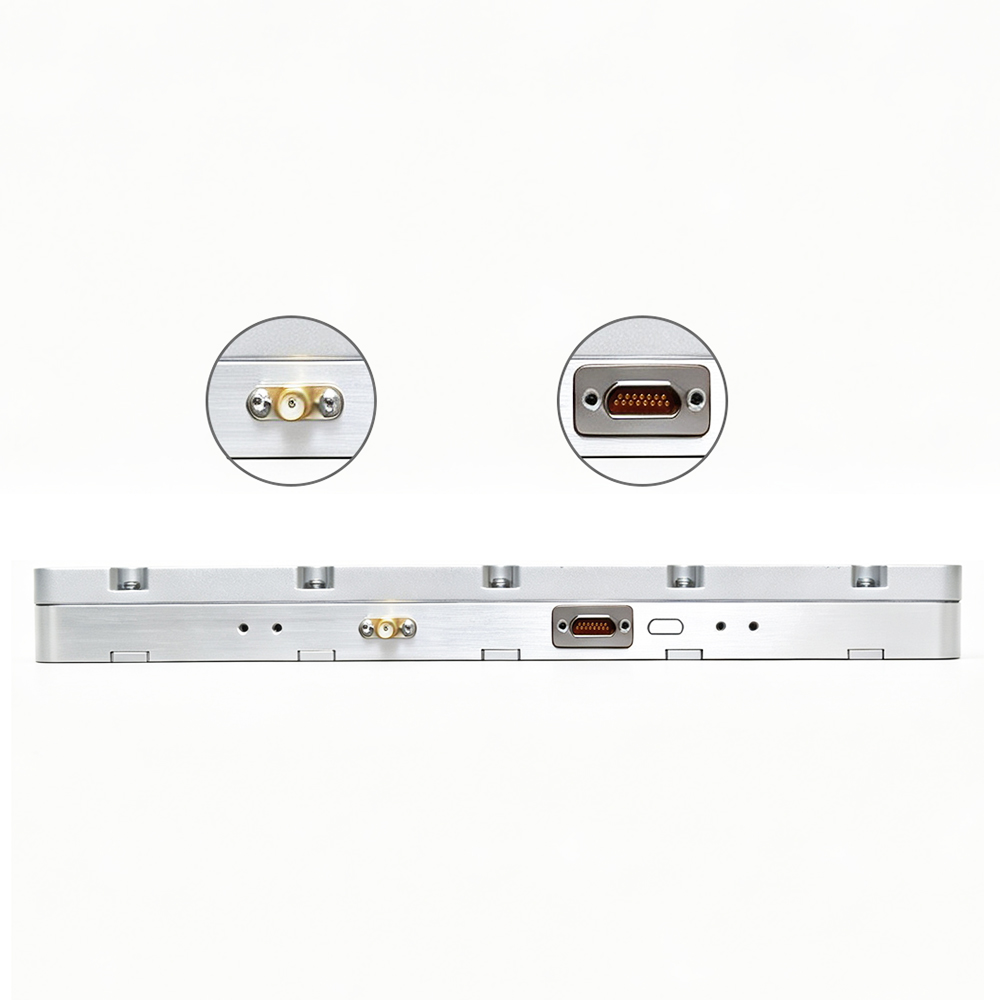

RF connector	SMA-K
RF output function	Output B1/L1/E1 frequency signal after amplification and mitigation
Built-in receiver	Integrated navigation receiver
Horizontal position accuracy	≤7 m, 95%, PDOP≤4
Vertical position accuracy	≤9 m, 95%, PDOP≤4
Velocity measurement accuracy	≤0.2 m/s, 95%
Antenna port burnout resistance	≥10 W
Operating voltage	DC 12V to 36V
Typical power consumption	≤23 W in receiver continuous mode
Power consumption with AJ active	≤40 W

Interface and mechanical data

Item	Specification
Power/data connector	J30J-15ZKP
Serial level	LVTTL 3.3V default
Receiver serial output	5 Hz, 115200 baud, UBX with PVT, DOP, SAT and TIMEGPS by default
Dimensions	280 mm × 280 mm × 28 mm (±0.5 mm)
Weight	≤2200 g
Housing finish	Natural aluminum with conductive oxidation, silver-gray radome
Mounting interface	8 side mounting holes, M3×8
Operating temperature	-40℃ to +70℃, 10%–90% RH, non-condensing
Storage temperature	-45℃ to +85℃, 10%–95% RH, non-condensing
Waterproof rating	Not lower than IP65

Installation and use

The unit is mounted with brackets and screws, and the installation guide recommends overhead mounting with airflow beneath the base for heat dissipation. The top side should face open sky for best GNSS reception, and any cover above the antenna should use L-band RF-transparent material with transmission of at least 92%.

16‑Element GNSS Anti‑Spoofing Antenna is suitable for civilian and commercial UAVs, autonomous systems, mobile platforms and other applications that need stronger protection against both interference and false-signal attacks. For product inquiries or technical discussion, please contact us by email or WhatsApp.

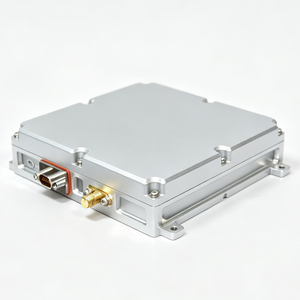

Here, we showcase more of our anti-jamming and anti-spoofing antennas. You can select the product that best suits your needs.
