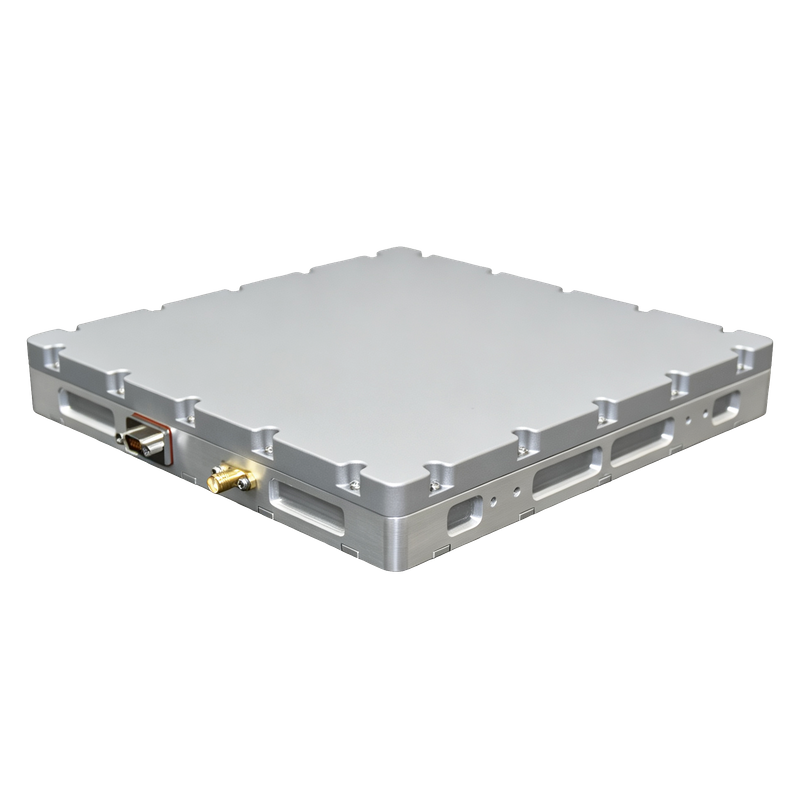

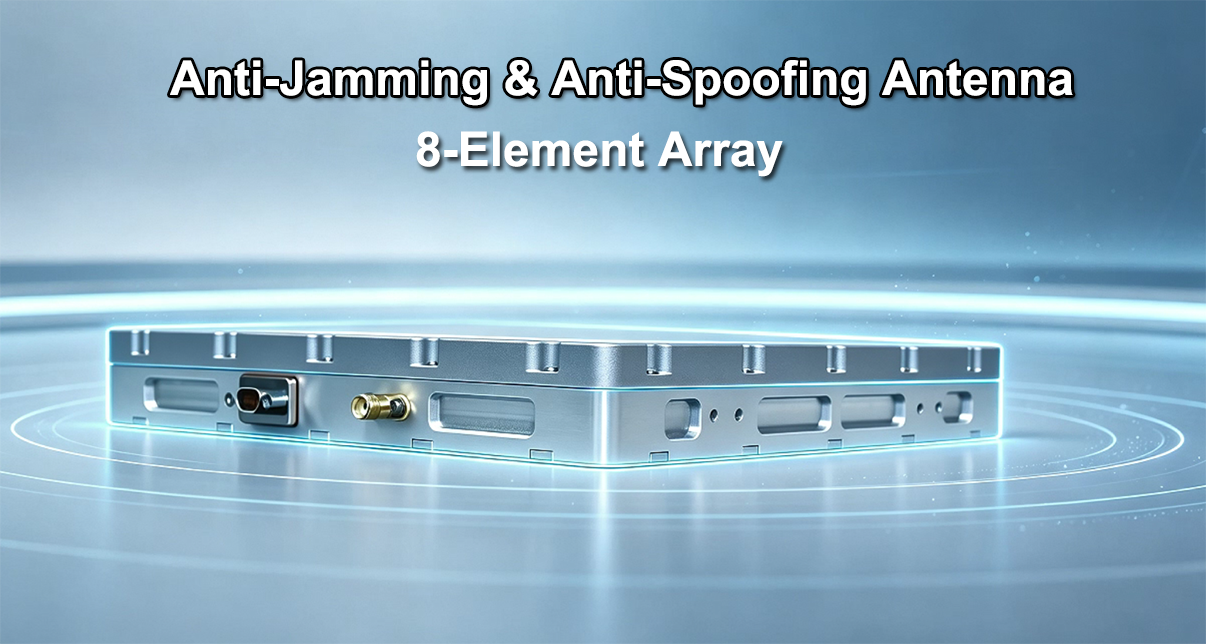

8‑Element GNSS Anti‑Jamming & Anti‑Spoofing Antenna

Quantity:
Availability:





Inquire Add to Basket

Product Description

The Antenna is a newly released 8‑element GNSS antenna that protects against both suppression jamming and spoofing, giving civilian and commercial platforms a stronger navigation defense than conventional anti-jamming-only designs. It supports BDS B1I/B1C, GPS L1 and Galileo E1, while combining interference mitigation, spoofing awareness and clean RF output in one integrated unit.

Product overview

The S8180 is built for applications that need more than simple jammer suppression. With advanced array signal processing, it can counter suppression jamming, spoofing and combined suppression‑spoofing attacks at the receiver front end, helping maintain stable navigation signals in complex RF environments.

In addition to filtering hostile interference, the antenna provides real-time awareness of the local signal environment by reporting suppression jamming power, suppression jamming count and spoofing source count. This gives system integrators and operators more visibility into signal conditions and supports smarter decision-making for UAVs and other autonomous platforms.

Key features

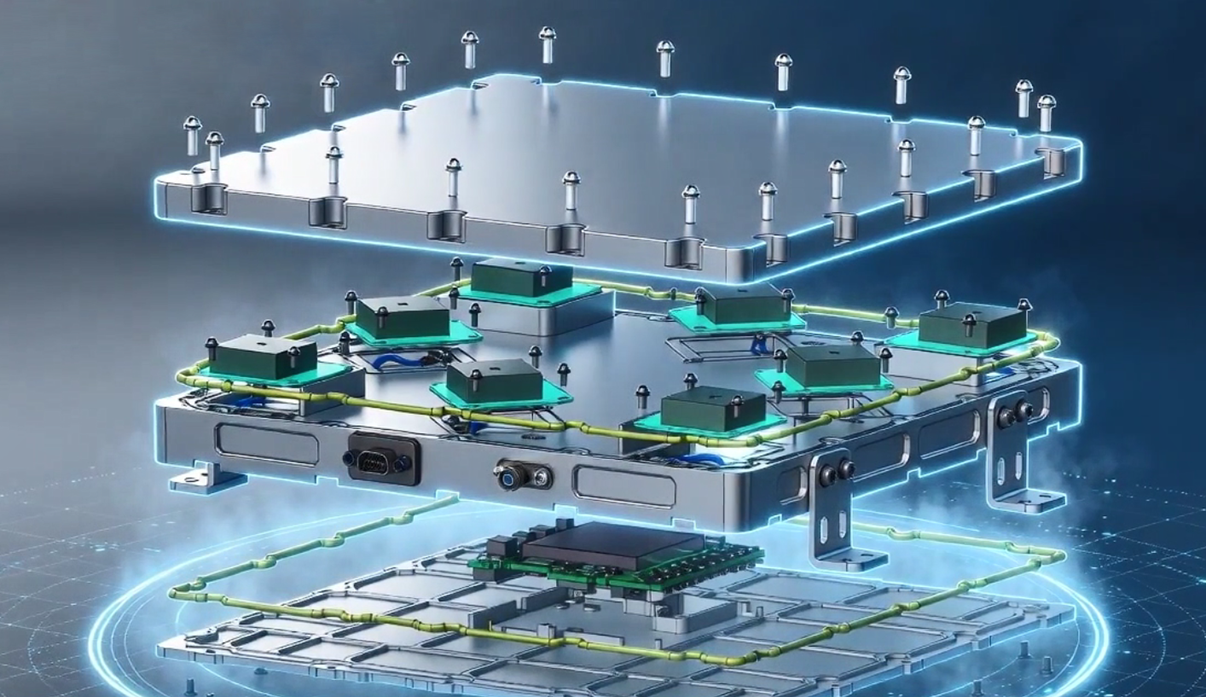

8‑element array architecture for stronger anti-interference performance and better front-end signal protection.
Simultaneous protection against suppression jamming, spoofing and mixed attack scenarios.
Support for replay spoofing and generative spoofing processing.
Capability to handle up to 7 suppression jammers from different directions.
Capability to identify up to 4 spoofing sources from different directions.
Integrated receiver optimized for strong interference environments and UAV applications.
RF output provides a cleaned navigation signal after mitigation processing.
Compact, rugged housing with IP65 protection for outdoor deployment.

Signal protection performance

Technical specifications

Item	Specification
Product type	Single-frequency high-performance anti-jamming & anti-spoofing antenna
Supported frequency bands	BDS B1I / B1C, GPS L1, Galileo E1
Number of array elements	8 elements
Anti-jamming types	Broadband, narrowband, frequency-sweeping, pulse and combined suppression jamming
Number of jammers handled	1 to 7 sources

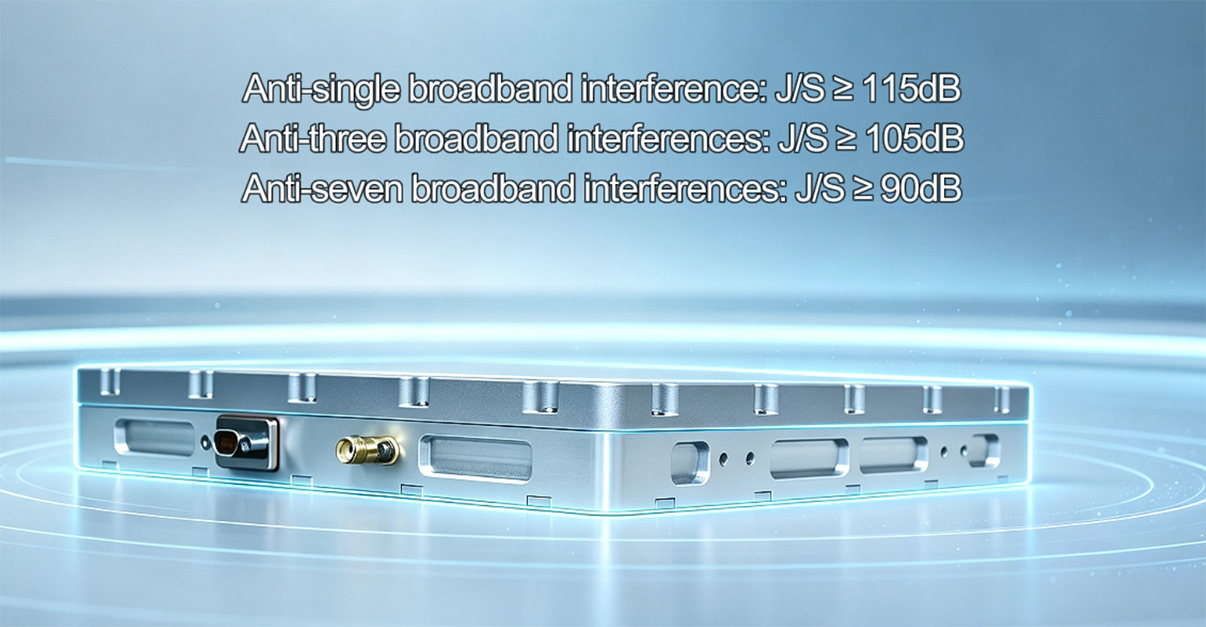

Single broadband anti-jamming capability	Interference-to-signal ratio ≥115 dB @ -130 dBm
Three broadband anti-jamming capability	≥105 dB @ -130 dBm
Seven broadband anti-jamming capability	≥90 dB @ -130 dBm
Anti-spoofing types	Replay spoofing, generative spoofing
Number of spoofing sources	Up to 4 sources from different directions
Spoofing handling rule	Spoofing signals with J/S ratio ≥30 dB are classified and processed as suppression jamming
Environment awareness	Real-time reporting of jamming power, jamming count and spoofing source count

RF, receiver and power

Item	Specification
RF output power	-55 dBm to -70 dBm
RF impedance	50 ohms
Output VSWR	≤2.0

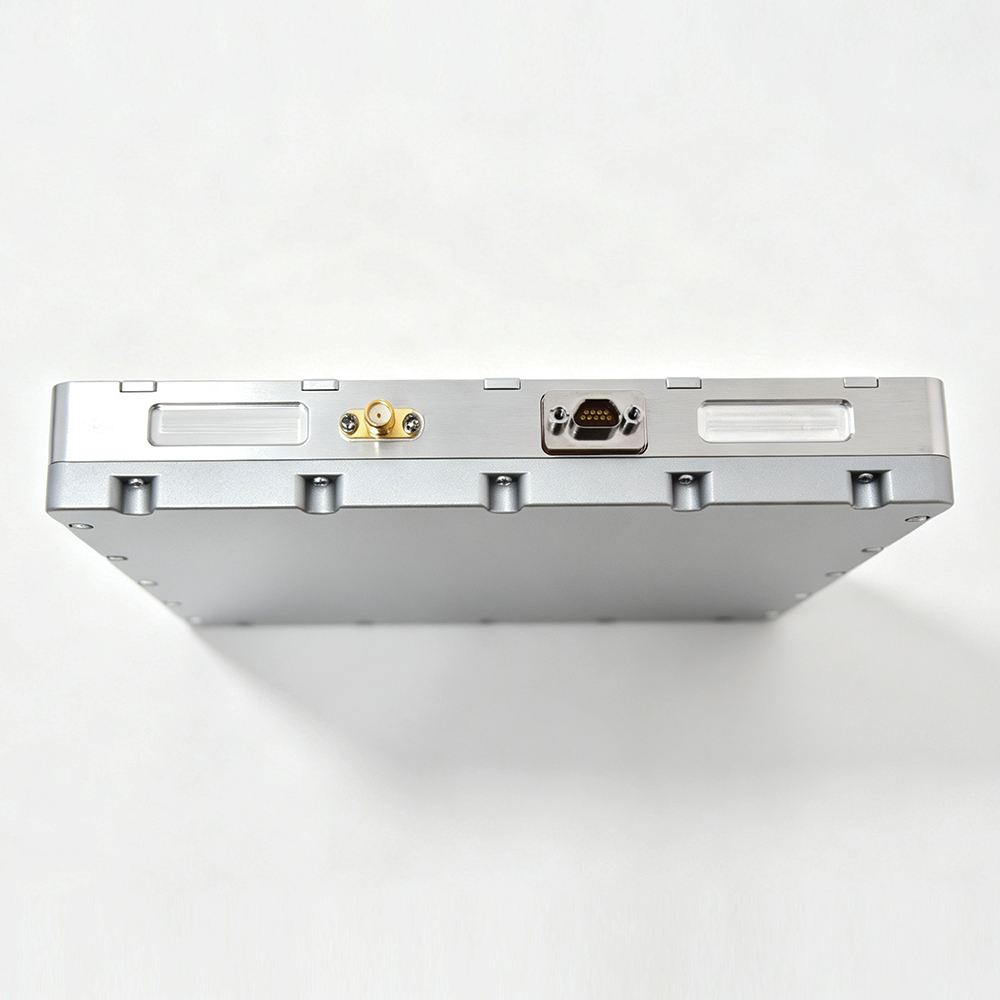

RF connector	SMA-K
RF output function	Output B1/L1/E1 frequency signal after amplification and mitigation
Built-in receiver	Integrated navigation receiver
Horizontal position accuracy	≤7 m, 95%, PDOP≤4
Vertical position accuracy	≤9 m, 95%, PDOP≤4
Velocity measurement accuracy	≤0.2 m/s, 95%
Antenna port burnout resistance	≥10 W
Operating voltage	DC 12V to 36V
Typical power consumption	≤10 W in receiver continuous mode
Power consumption with AJ active	≤17 W

Interface and mechanical data

Item	Specification

Item	Specification

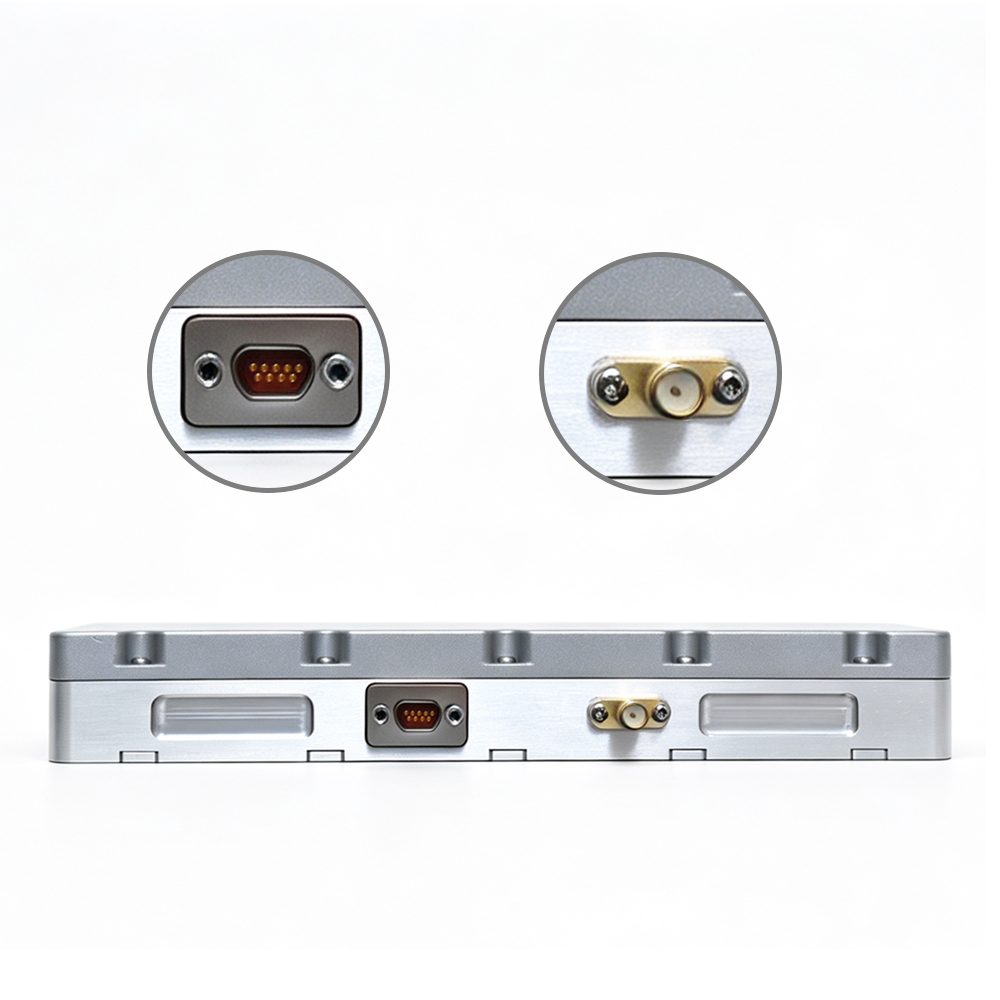

Power/data connector	J30J-9ZK
Serial level	LVTTL 3.3V default, RS422 optional
Receiver serial output	5 Hz, 115200 baud, UBX with PVT, DOP, SAT and TIMEGPS by default

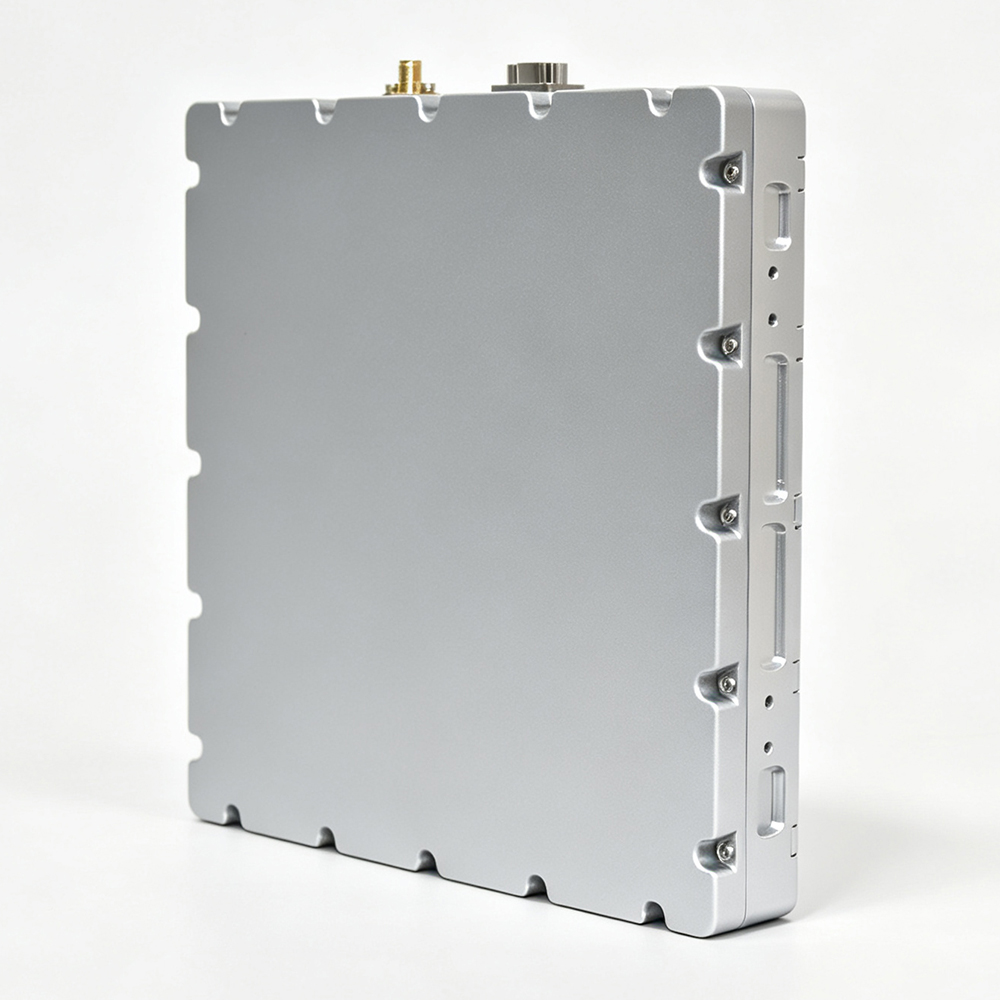

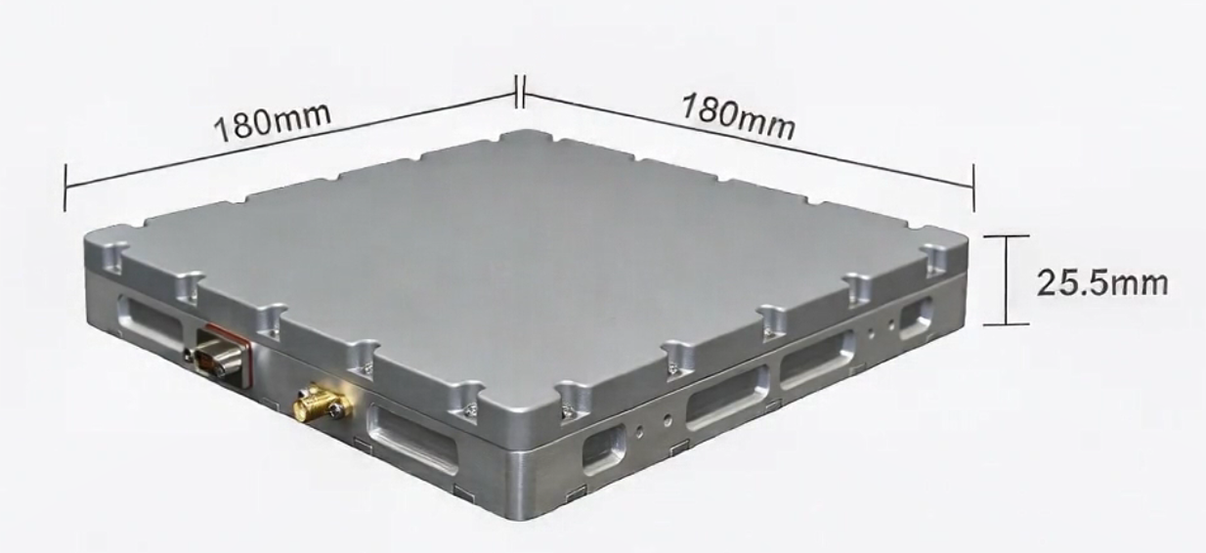

Dimensions	180 mm × 180 mm × 25.5 mm
Weight	≤890 g
Housing finish	Natural aluminum with conductive oxidation, silver-gray radome
Mounting interface	8 side mounting holes, M3×8
Operating temperature	-40℃ to +70℃, 10%–90% RH, non-condensing
Storage temperature	-45℃ to +85℃, 10%–95% RH, non-condensing
Waterproof rating	Not lower than IP65

Installation and applications

The unit is mounted with brackets and screws, and overhead installation is recommended to improve airflow under the heat-dissipation base. The antenna top should face open sky for best GNSS visibility, and any cover above it should use L-band RF-transparent material with transmission of at least 92%.

The 8‑Element GNSS Anti‑Jamming & Anti‑Spoofing Antenna is suitable for civilian and commercial UAVs, autonomous systems and other professional platforms that need stronger protection against both interference and false-signal attacks. For product inquiries or technical discussion, please contact us by email or WhatsApp.
