four-element anti-jamming navigation device with requencies supported  B1/L1/E1

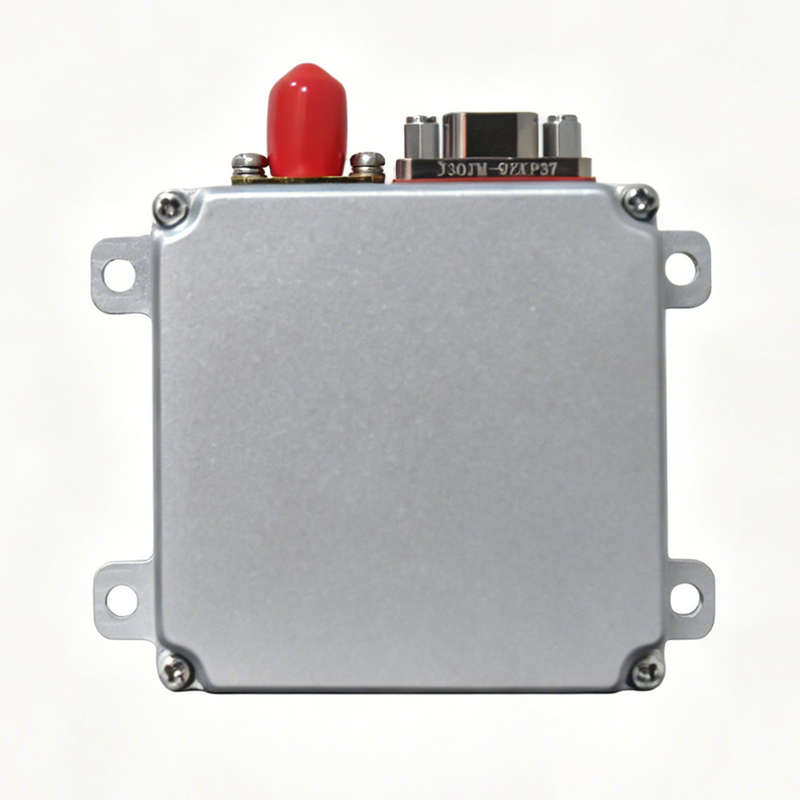

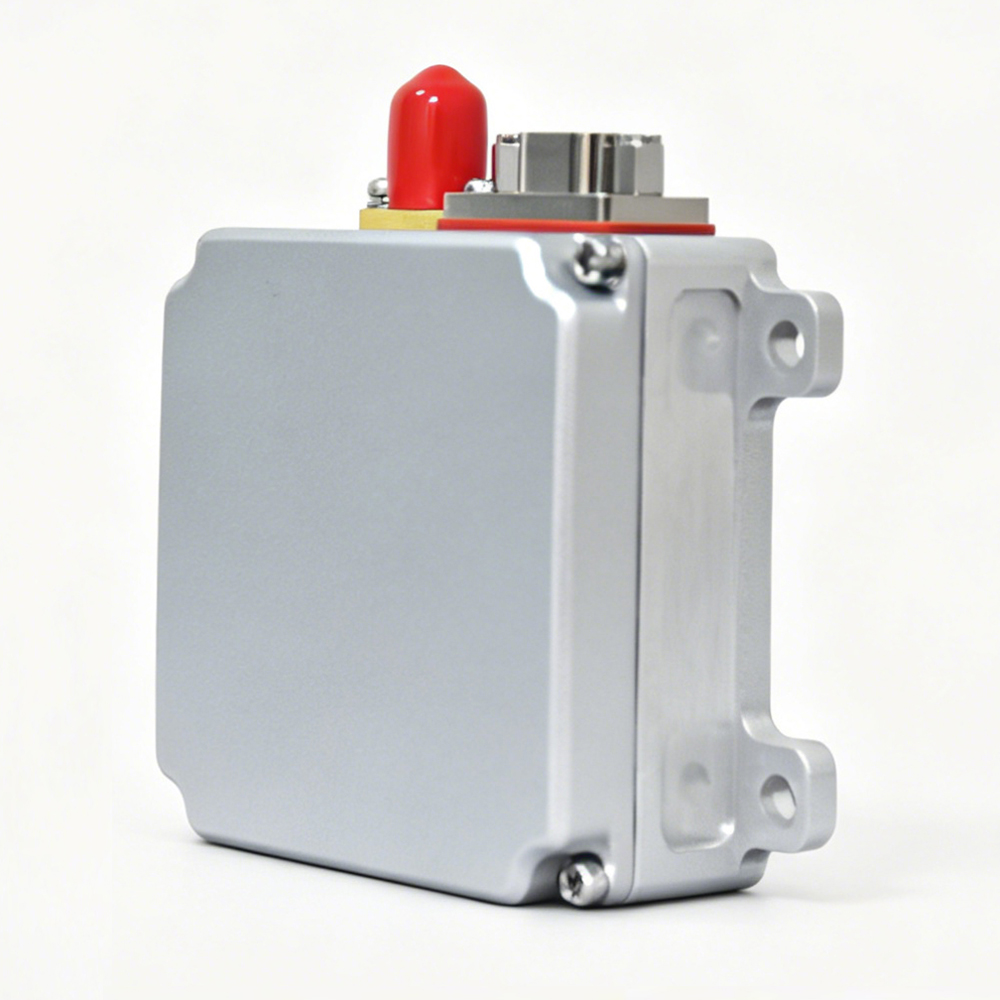

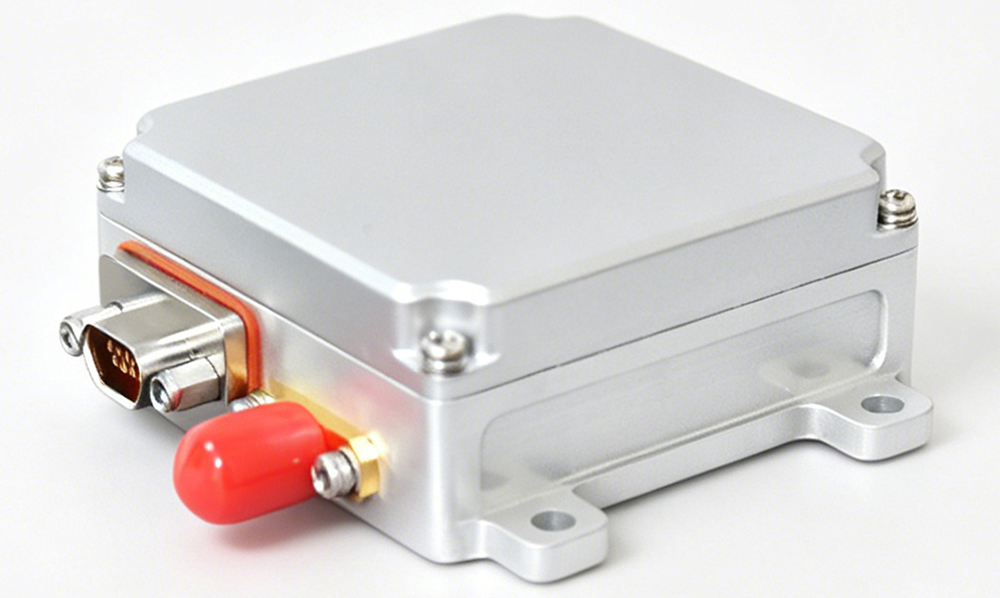

This is a four-element anti-jamming navigation device RS-AJ-S-4-50 supporting the B1, L1, and E1 frequency bands. It is capable of mitigating various types of interference—including wideband, narrowband, pulse, and frequency-hopping signals—and can suppress interference originating from one to three directions. Featuring a low-cost, compact, and lightweight design, the device meets high-precision navigation requirements in complex environments and is widely used in fields such as UAV navigation, electronic warfare, autonomous driving, and high-precision surveying and mapping.

Dimensions: 50×50×20mm (±0.5mm)

Weight: ≤120g

Power consumption: ≤4W, Receiver with AJ active ≤6W

Antenna array: 4-element

Interference suppression types: wideband, narrowband, pulse, swept-frequency, and other interference suppression methods.

Number of supported interference sources: 1–3 directional interference sources.

Frequencies Supported (default): B1/L1/E1

Interference Suppression Performance:

1J/S≥95dB @ -130 dBm,

2J/S≥80dB @ -130 dBm

3J/S≥60dB @ -130 dBm

Anti-interference coverage: Azimuth 0°–360°, elevation –10°–90°

Impedance: RF impedance 50 Ω

RF output power: –70 dBm to –55 dBm

Supply voltage: C 9~32V

Temperature range: 40℃~+70℃

Interfaces: J30J-9ZK+SMA

Data Interface: RS422

Serial port level: LVTTL (Default)

Mounting: overhead installation

Waterproof Rating: IP65

Product Features: Low-cost, compact, and lightweight design, suitable for precise navigation requirements in complex environments.
