150×150mm 16‑Element GNSS Anti‑Jamming Antenna for UAV, Maritime & Critical Infrastructure (BDS B1 / GPS L1 / Galileo E1)

16‑Element GNSS Anti‑Jamming Antenna for UAV, Maritime & Critical Infrastructure (BDS B1 / GPS L1 / Galileo E1)

Quantity:
Availability:





Inquire Add to Basket

Product Description

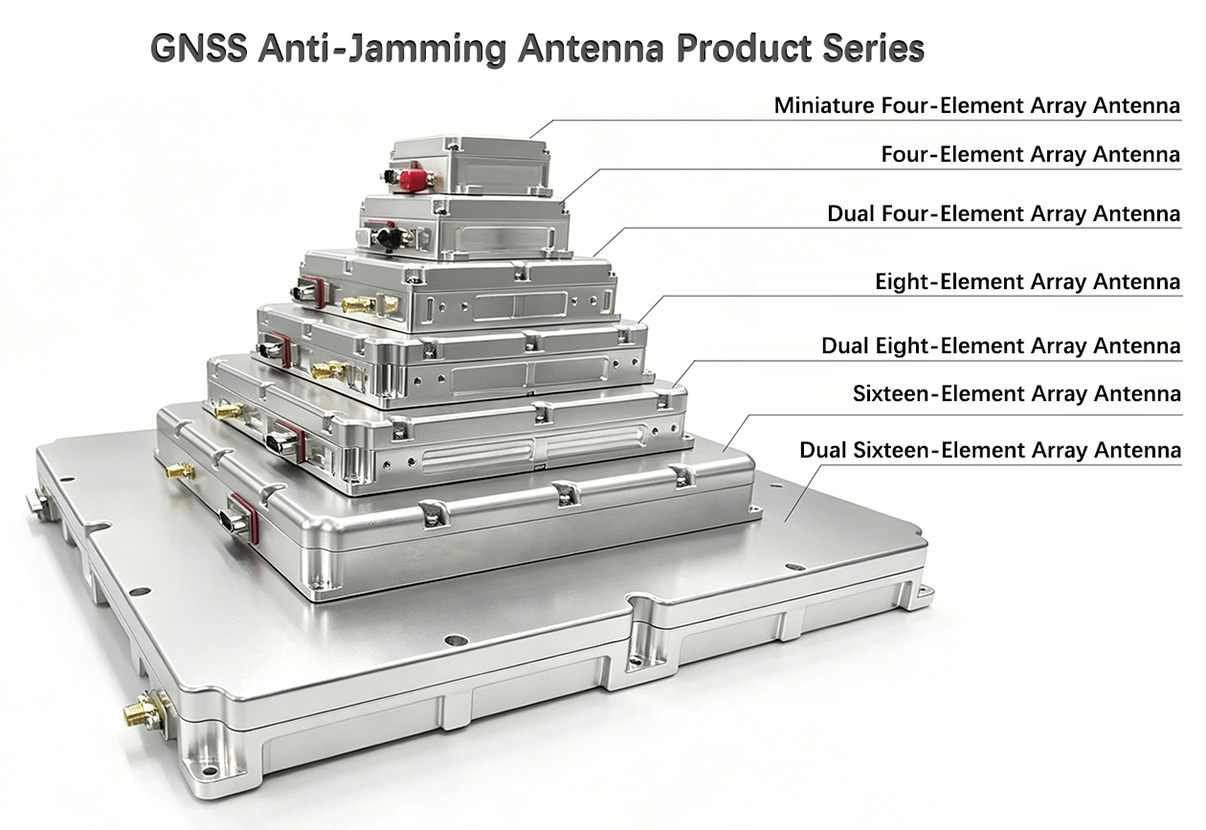

Product Overview

This 16-element anti-jamming antenna is a high-performance GNSS front-end device designed to maintain positioning and timing services even in contested environments with complex RF conditions. Integrating a 16-element antenna array with advanced anti-jamming processing technology—and offering an optional built-in GNSS receiver—it delivers robust navigation capabilities for industrial and agricultural drones, unmanned ground vehicles, mobile mapping systems, marine equipment, robotics, and other civilian autonomous platforms that rely on reliable position, velocity, and timing data.

The antenna receives, filters and processes BDS B1, GPS L1, Galileo E1 and optionally GLONASS G1 or BDS B3, suppressing up to 15 simultaneous jamming sources from any direction. Powered over a wide 9–36 V DC input and housed in a compact 200 x 200 x 26 mm IP65 enclosure, it is ideal for new designs and retrofit upgrades where GNSS robustness is mandatory.

Key Features & Benefits

16‑element CRPA‑type array for spatial filtering and deep jamming suppression in B1/L1/E1 (extended G1) or B3 bands.
Up to 15 concurrent interferers rejected, including broadband, narrowband, sweep and pulse jamming scenarios.
Integrated anti‑jamming processor + optional GNSS receiver, supporting both RF‑front‑end mode and full PVT output mode.
High jamming‑to‑signal resilience:

Single broadband: J/S ≥ 105 dB @ –130 dBm
Three broadbands: J/S ≥ 95 dB @ –130 dBm
Fifteen broadbands: J/S ≥ 80 dB @ –130 dBm

Full sky protection with 0°–360° azimuth and –90° to +90° elevation coverage for jamming suppression.
Embedded receiver accuracy: horizontal ≤ 7 m, vertical ≤ 9 m (95%), velocity ≤ 0.2 m/s (95%).
Ruggedized design: –40 °C to +70 °C operating range, IP65 or better ingress protection, MTBF ≥ 2000 h.
Flexible integration via SMA‑K RF connector and J30J‑15ZKP power/data interface with serial configuration.

Technical Specifications

GNSS & Anti‑Jamming Performance

Category	Specification	Description
Supported constellations	BDS	Supported (B1/B3)
	GPS	Supported (L1)
	Galileo	Supported (E1)
	GLONASS	Extended support (G1)
Supported signals	BDS_B1C/B1I	Yes
	GPS_L1 C/A	Yes
	Galileo_E1	Yes
	GLONASS_G1	Extended support
Elements	Array size	16 elements
Anti‑jamming types	Jamming classes	Broadband, narrowband, sweep, pulse, combined jamming in B1/L1/E1 (extended G1) or B3 bands
Anti‑jamming capability	Single broadband	J/S ≥ 105 dB @ –130 dBm
	Three broadbands	J/S ≥ 95 dB @ –130 dBm
	Fifteen broadbands	J/S ≥ 80 dB @ –130 dBm
Multi‑source suppression	Number of interferers	1–15 jammers from different directions simultaneously
Protected airspace	Azimuth	0°–360°
	Elevation	–90° to +90°

RF & Receiver Characteristics

Category	Specification	Description
RF output	Power level	–55 dBm to –70 dBm
	Impedance	50 Ω
	VSWR	≤ 2.0
Output modes	RF modes	Bypass (hard‑through) and anti‑jamming modes, selectable via serial port
Built‑in receiver	Position accuracy	Horizontal ≤ 7 m, vertical ≤ 9 m (95%, PDOP ≤ 4)
	Velocity accuracy	≤ 0.2 m/s (95%)
	Output	Positioning results via data interface
Power handling	Anti‑burn capability	≥ 10 W at antenna aperture
Power supply	Voltage range	+9 V to +36 V DC
	Typical consumption	≤ 25 W during normal operation

Mechanical & Environmental

Category	Specification	Description
Dimensions	Length × Width	200.0 mm × 200.0 mm (tolerance ≤ ±0.5 mm)
	Height	≤ 26 mm (tolerance ≤ ±0.5 mm)
Weight	Antenna mass	≤ 1200 g (excluding cables)
Color	Housing	Silver grey, 74 B04 (GSB05‑1426‑2001)
Mounting	Bottom interface	4 × M3 screw holes, depth 5.5 mm
	Side interface	4 × M2.5 screw holes, depth 3 mm
	Mounting screws	4 × M3 screws supplied
Marking	Nameplate	Product name, model, serial number, frequency, manufacturer, production date, etc.
Reliability	MTBF	≥ 2000 h
	Continuous operation	≥ 24 h
Environment	Operating temperature	–40 °C to +70 °C, 10–90% RH, non‑condensing
	Storage temperature	–45 °C to +85 °C, 10–95% RH, non‑condensing
Protection	Ingress rating	Not lower than IP65

Interfaces

Interface	Type	Purpose
RF output	SMA‑K	GNSS RF output after amplification and anti‑jamming processing
Power/Data	J30J‑15ZKP	Power input and data/serial interface for control and receiver output

Typical Applications

It provides robust navigation capabilities for a wide range of civil autonomous platforms—including industrial and agricultural drones, unmanned ground vehicles, mobile mapping systems, marine equipment, and various types of robots—all of which rely on reliable position, velocity, and timing data.

If you have any requirements or are seeking technical improvements, please feel free to contact us via email or WhatsApp.
