How to Choose the Right CRPA Antenna for UAVs, Robotics, and Critical Infrastructure

Defeating the Electronic Threat: The Ultimate Guide to CHREDSUN GNSS Anti-Jamming & Anti-Spoofing CRPA Antennas

In the era of modern industrial automation, Global Navigation Satellite System (GNSS) signals serve as the invisible backbone of positioning, navigation, and timing (PNT). From autonomous drone fleets and precision agricultural UAVs to port automated guided vehicles (AGVs), marine survey platforms, and data center timing racks, deep reliance on satellite data is universal.

However, GNSS signals travel over 20,000 kilometers from space and arrive at the Earth's surface with extremely low power. This leaves them highly vulnerable to electromagnetic noise, illegal privacy jammers, or malicious spoofing transmitters. To protect these high-value civilian and commercial assets, CHREDSUN provides a comprehensive lineup of Controlled Reception Pattern Antennas (CRPA). This guide details how these advanced systems operate, breaks down their core parameters, and outlines how to select the ideal array configuration for your exact operational risks.

What is CRPA Technology and Why Does It Matter?

A CRPA (Controlled Reception Pattern Antenna) is a multi-element GNSS antenna array that leverages advanced spatial signal processing. Instead of relying on a single patch antenna that absorbs everything in its field of view, a CRPA dynamically shapes its reception pattern in real time.

When the system detects interference, its adaptive algorithms compute a spatial covariance matrix and steer deep nulls (cancellation zones) directly toward the direction of the jammers. Simultaneously, it maintains constructive gain toward genuine overhead satellites, ensuring uninterrupted tracking.

The CHREDSUN Technical Advantage

Historically, CRPA systems were restricted to military platforms due to heavy defense trade regulations (like ITAR) and bulky, multi-component architectures. CHREDSUN breaks this mold by specializing in civilian and commercial CRPA solutions. By packing the antenna elements, multi-channel RF front-ends, adaptive processing basebands, and optionally a high-precision GNSS receiver into a single integrated "mushroom-head" housing, CHREDSUN delivers a civilian-focused SWaP-C (Size, Weight, Power, and Cost) architecture that makes robust navigation defense highly accessible.

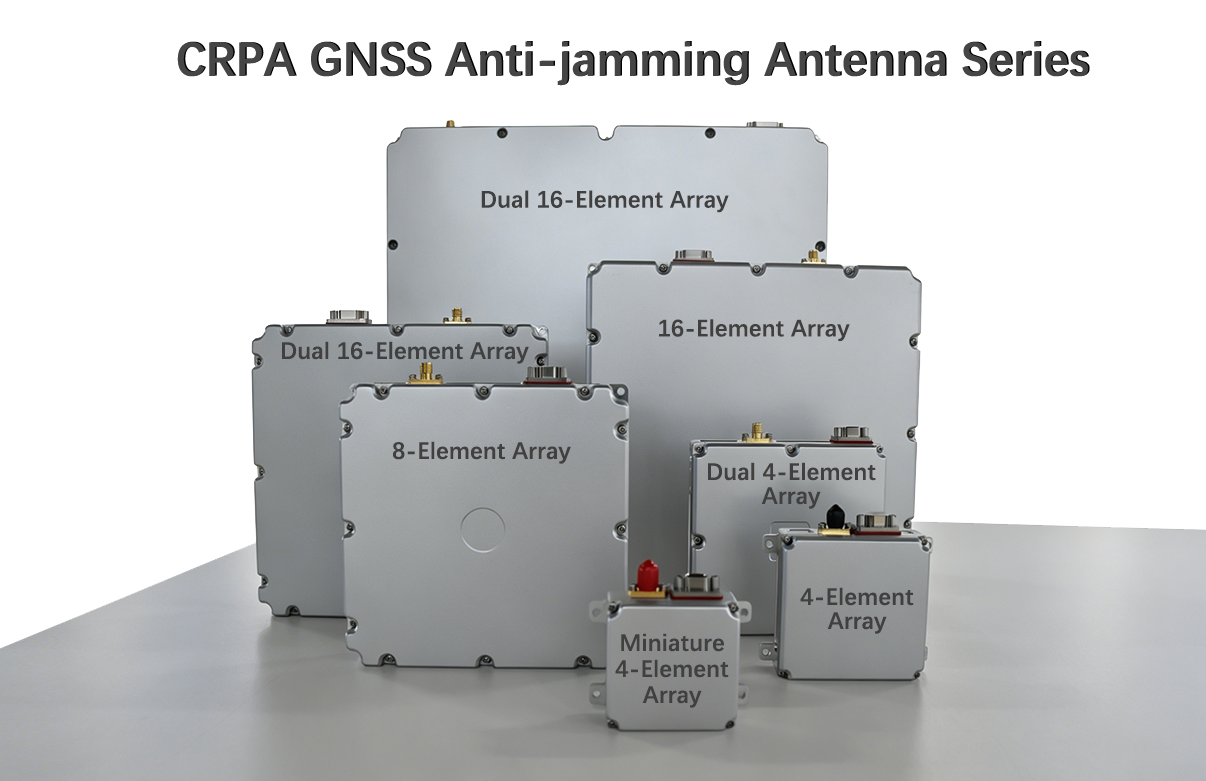

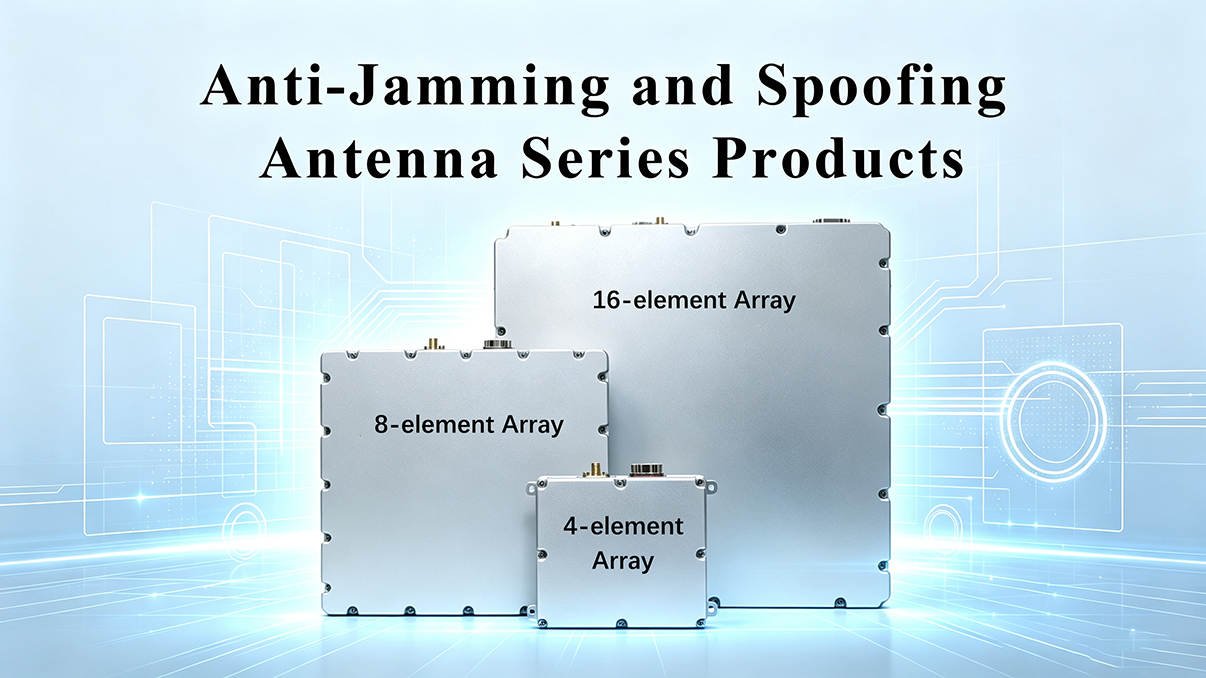

CHREDSUN CRPA Core Product Lineup

To simplify system engineering and avoid over-specifying or under-protecting a platform, CHREDSUN structures its CRPA solutions across distinct array sizes and capability tiers:

Technical Performance Breakdown

CHREDSUN antennas deliver rapid null-steering capabilities that keep satellite links locked under extreme conditions. Below is the technical performance framework across the product portfolio:

• Jamming Suppression Level: Built to handle deep spatial filtering, providing reliable protection even when the incoming interference power is orders of magnitude stronger than the underlying satellite signals.

• Constellation & Band Coverage: Multi-constellation, multi-band support spanning BDS, GPS, Galileo, and GLONASS in various frequency combinations. This prevents a single jammer from blinding your equipment by simply hopping to an adjacent frequency band.

• System Integration Structure: Features integrated PVT output options. By delivering filtered, pre-calculated Position, Velocity, and Time data directly to flight controllers via standard serial protocols, it eliminates the need to integrate separate, costly high-end standalone receivers.

• Environmental & Electrical Defense: Housed in high-protection, weather-sealed IP-rated casings with built-in front-end RF power limiters to protect the internal circuitry against high-power microwave burnout.

Engineering Selection: Suppression-Only vs. Anti-Spoofing

When purchasing a CHREDSUN array, a critical architectural decision is choosing between a Suppression-Only Anti-Jamming Antenna and a combined Anti-Jamming + Anti-Spoofing Antenna. To determine which fits your budget and threat profile, you must understand the two distinct ways signals are compromised:

1. Understanding the Threats

• Suppression Jamming (The Loud Threat): A device floods the surrounding area with raw radio frequency noise. It acts like someone shouting in a quiet room, completely burying the authentic satellite signal. The receiver immediately realizes it is blind, reporting "no position" or dropping satellite locks. This is commonly seen near industrial zones or from illegal vehicle-mounted jammers.

• Spoofing (The Silent Deceiver): A spoofing transmitter generates counterfeit GNSS signals that mimic valid satellite structures. Initially matching the true signal power, it tricks the receiver into locking onto it. Over time, the spoofer slowly increases its gain and manipulates the internal coordinate data, causing the drone or vehicle to drift off course while the receiver falsely reports a "perfect satellite lock".

2. How to Choose the Right Defense Tier

When Suppression-Only is Sufficient

For standard commercial operations looking for an optimized balance between protection and budget, suppression-only models are highly effective.

• Urban & Campus Robotics: Automated delivery carts or campus security rovers facing localized industrial noise or transient vehicle-mounted privacy jammers.

• Standard Agricultural Drones: UAVs working localized fields where the primary problems are environmental obstacles, multipath reflections, and scattered noise.

• Recommended Tier: CHREDSUN Compact 4-Element or 8-Element Suppression-Only variants.

When Anti-Jamming + Anti-Spoofing is Mandatory

If a false coordinate stream could cause a catastrophic platform loss, property damage, or systemic network downtime, an anti-spoofing antenna array is required.

• Long-Range Cargo & Tactical UAVs: Operations crossing expansive or politically sensitive geographic zones where intentional spoofing is actively deployed to hijack or crash unmanned aircraft.

• Marine Survey & Industrial USVs: Unmanned surface vessels operating in offshore or deep-water corridors where positional trust is paramount to avoid collisions or boundary violations.

• Critical Timing Infrastructure: Telecommunications systems, financial transaction servers, and smart power grids that rely on sub-microsecond GNSS timing sync. A successful timing spoofing attack can desynchronize an entire network.

• Recommended Tier: CHREDSUN 16-Element or Dual-Array (32-Element) systems featuring advanced spatial angle-of-arrival (AoA) tracking to isolate and reject fake satellite signals.

Conclusion & System Integration Support

Implementing robust navigation defense is more than a simple hardware purchase; it requires a deep understanding of RF design, flight avionics integration, and your target environment's specific threat landscape. By offering a clear product ladder from ultra-lightweight 4-element modules to heavy-duty 32-element arrays, CHREDSUN allows commercial and civilian operators to scale their protection precisely to their mission risk and budget.

Furthermore, CHREDSUN provides comprehensive OEM/ODM support, welcoming collaboration on custom mechanical dimensions, specialized interface conversions, and unique system configurations to ensure the antenna integrates seamlessly into your platform.

To help us tailor the perfect CHREDSUN CRPA antenna solution for your project, please let us know:

• What type of platform are you looking to protect? (e.g., Agricultural UAV, Port AGV, Survey USV, or Data Center Timing Rack)

• What are your primary size, weight, or integration constraints?

We can provide specific configuration guides, interface wiring specs, and customized quotation sheets to advance your system architecture.
