8160D Multi‑Band GNSS Anti‑Jamming Antenna for Industrial and Agricultural Drones

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Overview

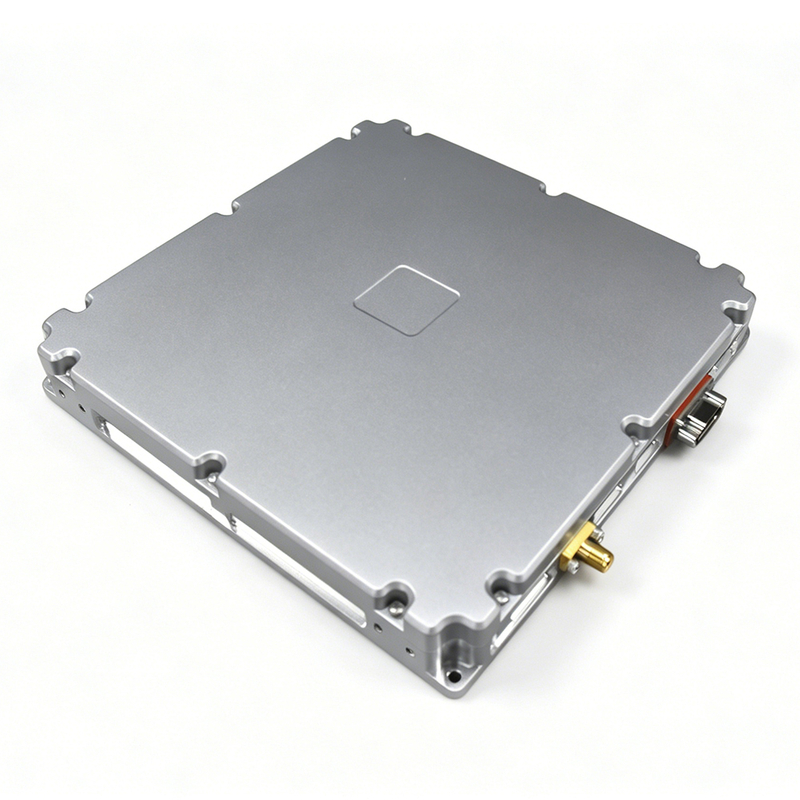

AJU‑8160D is a dual eight‑element GNSS anti‑jamming antenna unit developed for civilian and commercial navigation platforms that require stable satellite positioning in complex signal environments. It is compatible with a wide range of platforms, including industrial UAVs, agricultural drones, autonomous systems, mobile mapping equipment, marine navigation platforms and robotics systems, where reliable GNSS reception is important for safe and continuous operation.

Unlike a conventional GNSS antenna, AJU‑8160D is designed to strengthen useful satellite signals while suppressing unwanted interference across supported bands, helping receivers maintain navigation performance when signal conditions become challenging. This integrated navigation anti‑jamming unit supports BDS B1, GPS L1+L2 or L1+L5, and Galileo E1 signal paths, making it suitable for commercial and civilian applications such as inspection drones, precision agriculture, autonomous equipment, hydrographic survey systems and smart robotics.

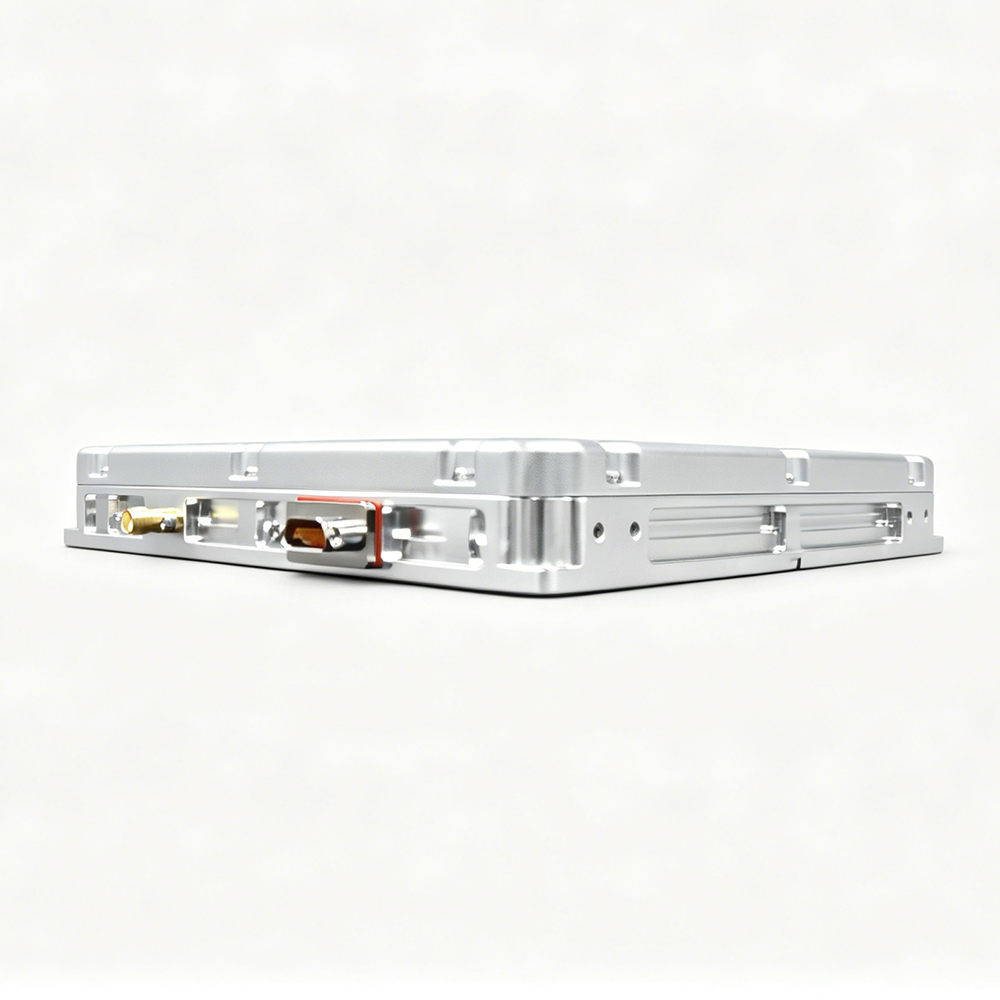

8160D dual eight element CRPA antenna (5).jpg

Civilian applications

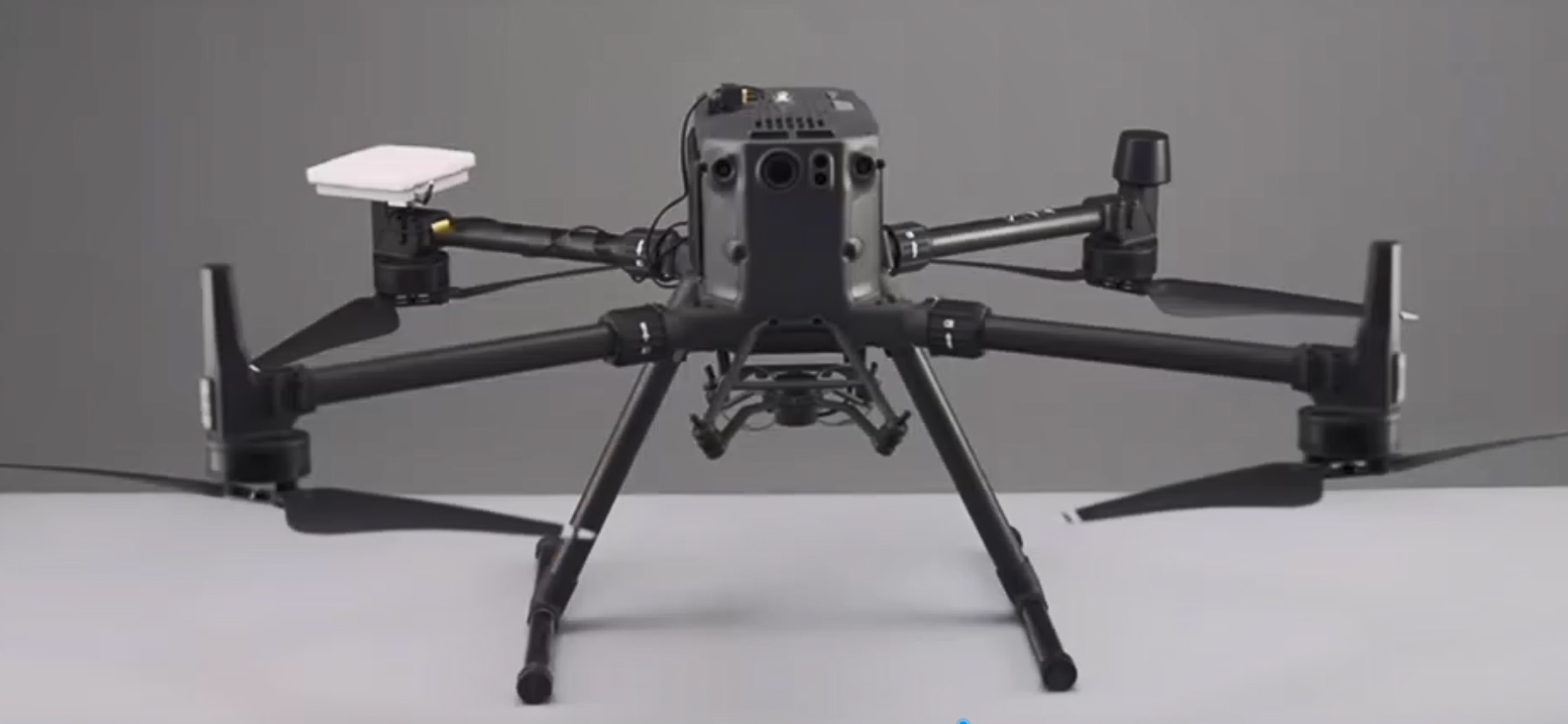

Our GNSS anti-jamming antennas are intended for lawful civilian and commercial use, especially where electromagnetic noise, dense infrastructure or accidental interference can reduce navigation quality. Typical applications include industrial UAV operations, agricultural drones, unmanned ground vehicles, mobile mapping, marine navigation, robotics and other autonomous systems that rely on accurate positioning, velocity and timing data.

The AJU‑8160D architecture uses multiple antenna elements and adaptive interference suppression to improve signal continuity, which is why comparable CRPA-based anti-jamming designs are widely discussed for high-reliability civilian navigation and infrastructure protection scenarios. The result is stronger positioning stability, fewer signal dropouts and better operational safety for professional platforms working in busy, noisy or interference-prone environments.

Key features

Dual eight‑element array design for advanced GNSS interference suppression and improved reception stability.
Support for BDS B1, GPS L1+L2 or L1+L5, and Galileo E1 signal combinations.
Mitigation of broadband, narrowband, sweep, pulse and combined interference sources.
Capability to handle 1 to 7 interference sources from different directions.
Soft bypass and anti‑jamming operating modes selectable through the serial interface.
Optional built‑in receiver with PVT output for easier integration into civilian UAV, robotics and autonomous navigation systems.
Wide DC 9V to 36V input and rugged IP65-rated enclosure for field deployment.

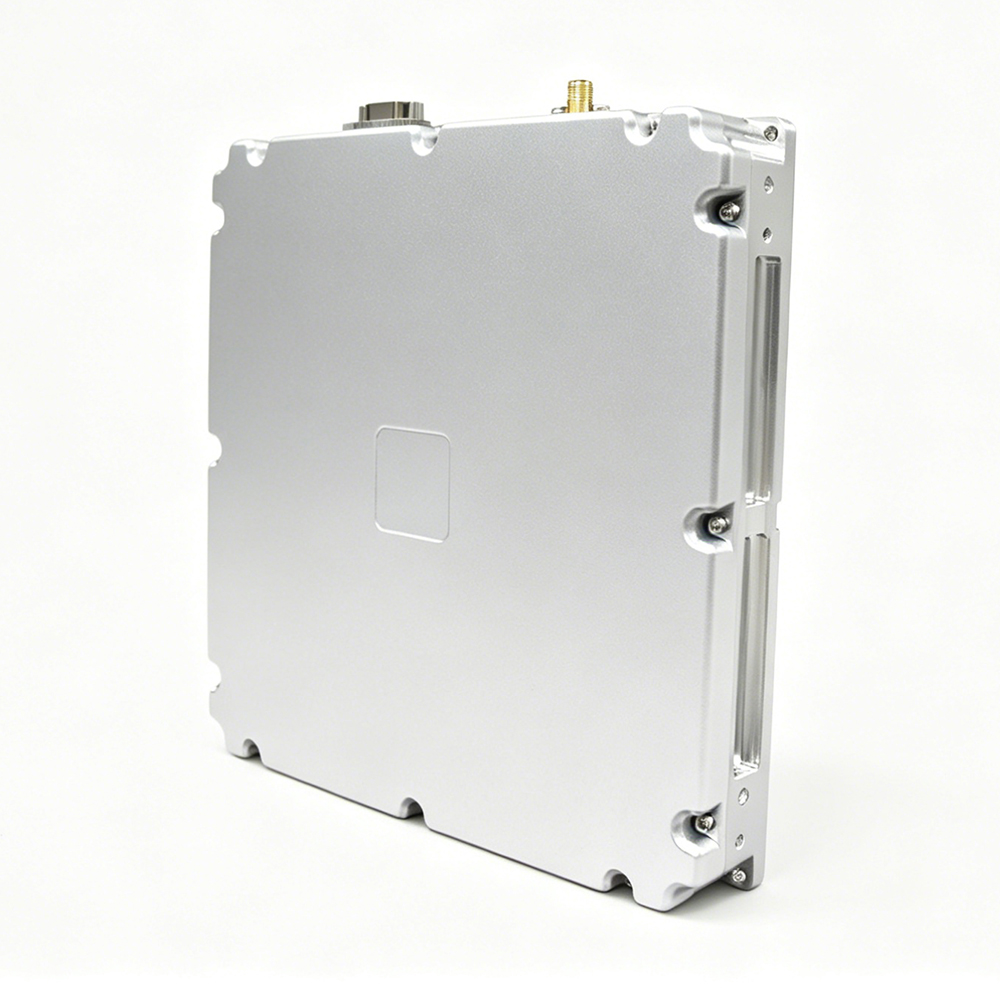

8160D dual eight element CRPA antenna (2).jpg

Technical parameters

RF and anti-jamming

Item	Specification
Product architecture	Double eight‑element array integrated navigation anti‑jamming unit
Supported GNSS options	BDS B1 + GPS L1+L2 + Galileo E1, or BDS B1 + GPS L1+L5 + Galileo E1
Channels	8 channels
Interference types	Broadband, narrowband, sweep, pulse and combined interference
Anti‑interference capacity	1 to 7 sources
Single broadband suppression	≥110 dB @ -130 dBm
Three broadband suppression	≥100 dB @ -130 dBm
Seven broadband suppression	≥85 dB @ -130 dBm
Spatial coverage	Azimuth 0°–360°, elevation -10°–90°
RF output power	-55 dBm to -70 dBm
RF impedance	50 ohms
Output VSWR	≤2.0
Port burnout resistance	≥10 W

Receiver, power and interfaces

Item	Specification
Receiver option	Built‑in receiver with PVT output
Horizontal accuracy	≤7 m, 95%, PDOP≤4
Vertical accuracy	≤9 m, 95%, PDOP≤4
Velocity accuracy	≤0.2 m/s, 95%
Operating voltage	DC 9V to 36V
Average power consumption	≤35 W

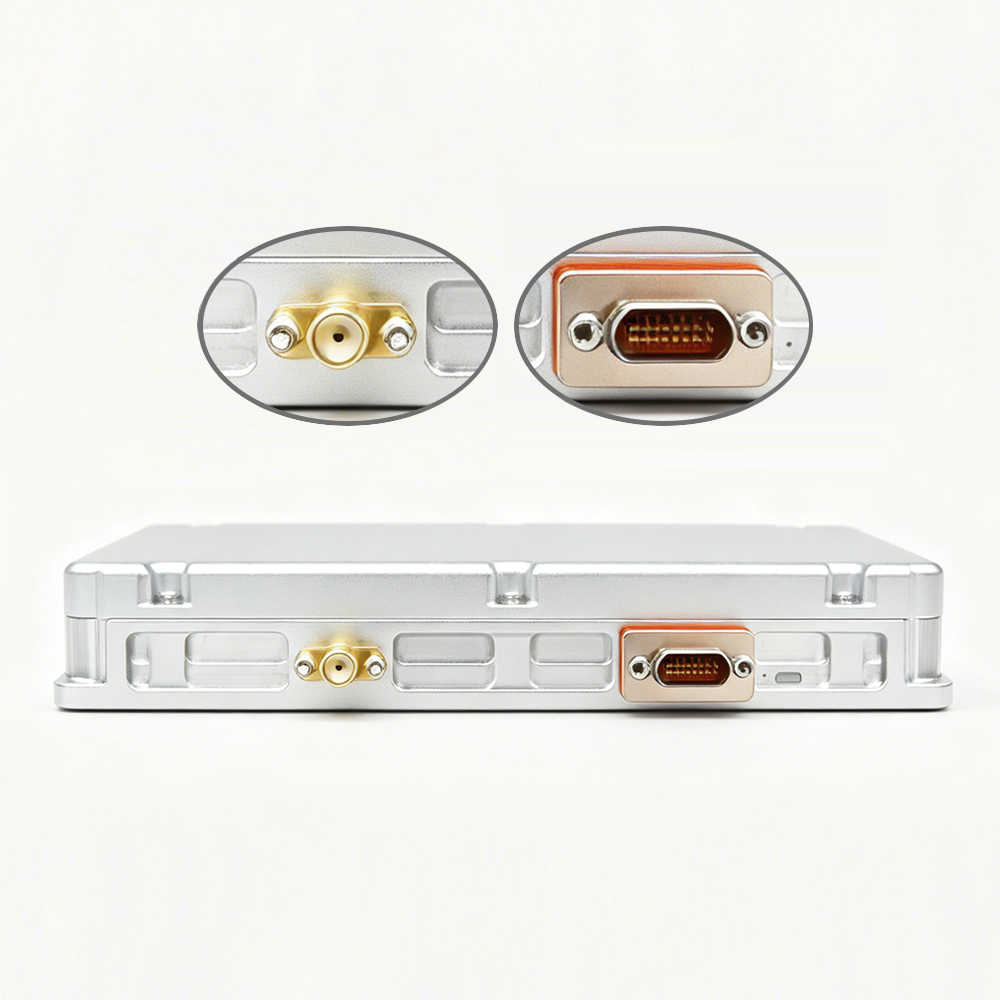

Power/data connector	J30J‑15ZK
RF connector	SMA‑K
Data interfaces	RS422 and RS232, with TTL optional on RS232 channels

Mechanical and environmental

Item	Specification
Dimensions	160 mm × 160 mm × 24.5 mm (±0.5 mm)
Weight	≤1000 g
Housing	Conductive oxidized aluminum body with silver‑gray/white radome
Mounting	4 × M2.5 side holes, depth 2.7 mm
Operating temperature	-40℃ to +60℃, 10%–90% RH, non‑condensing
Storage temperature	-45℃ to +85℃, 10%–95% RH, non‑condensing
Protection rating	IP65 or higher
MTBF	≥2000 h
Continuous operating time	≥24 h

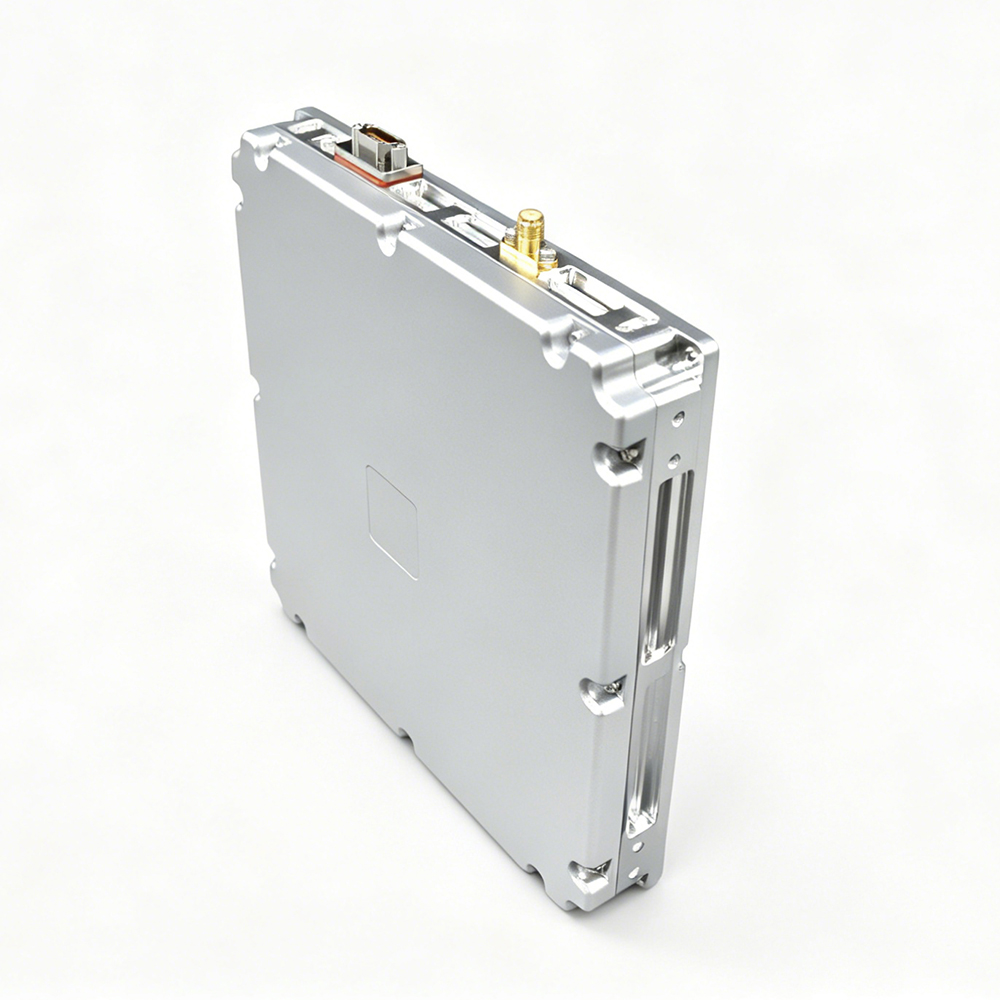

8160D dual eight element CRPA antenna (1).jpg

Installation and contact

For best performance, the metal base should be mounted with effective heat dissipation, and the antenna top should face open sky or sit beneath an L‑band RF‑transparent cover with at least 92% transmission. This helps the AJU‑8160D deliver stable GNSS performance for civilian drones, autonomous machines, marine systems and mapping platforms operating in difficult environments.
