CHREDSUN 230×230mm Dual 16‑Element GNSS Anti‑Jamming Antenna for B1/L1/E1 + L2 Or L5 With Receiver

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Overview

The CHREDSUN 230×230 mm Dual 16‑Element GNSS Anti‑Jamming Antenna is a high‑performance, low‑cost solution designed for platforms that demand robust, multi‑band protection against GNSS interference and jamming.

With two 16‑channel arrays and a built‑in GNSS receiver, this module simultaneously processes BDS B1 / GPS L1 /

Galileo E1 plus GPS L2 or GPS L5, delivering resilient positioning even in environments with up to 15 jammers from different directions. It is ideal for UAVs, manned aircraft, vehicles, maritime systems and critical infrastructure that require dual‑band GNSS and enhanced PNT resilience.

Key Features

Dual‑band, dual 16‑channel design: 16‑channel B1/L1/E1 + L2 or 16‑channel B1/L1/E1 + L5, with integrated anti‑jamming processing and PVT solution output.
High anti‑jamming performance: suppresses 1–15 wideband, sweep and pulse jamming sources across both bands, with SIR up to 105 dB at –130 dBm for single‑direction interference.
Built‑in GNSS receiver: outputs static position and velocity after anti‑jamming processing, so the antenna can act as both a protected RF front‑end and a complete navigation unit.

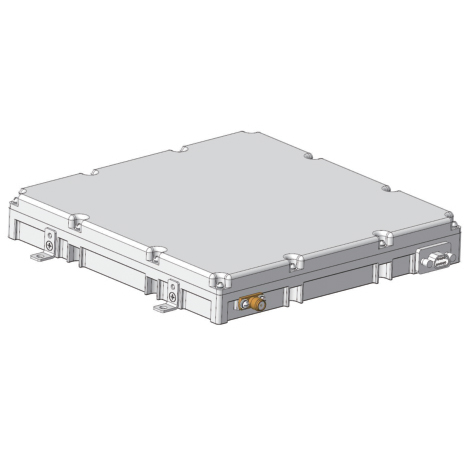

Rugged 230×230 mm housing: ≤25 mm height, ≤1.5 kg, IP65 waterproof rating, designed for harsh environments and tested to GNSS/UAV shock and vibration standards.
Flexible interfaces: J30J‑15ZKP power/data connector (RS422 + dual RS232 channels) and dual SMA‑K RF outputs for the two frequency bands.
Wide input voltage & low ripple: 9–36 V DC (nominal 12 V) with ≤100 mV ripple, average power consumption ≤50 W.

Technical Specifications

Functional Overview

Item	Description
Product type	230×230 mm dual sixteen‑element GNSS anti‑jamming antenna with receiver
Supported bands	BDS_B1, GPS L1, Galileo E1 + GPS L2 or GPS L5
Core functions	Reception, amplification, down‑conversion, filtering, anti‑jamming processing, up‑conversion RF output, built‑in PVT solution
Jamming types	Wideband, sweep, pulse jamming and combinations within B1/L1/E1+L2 or B1/L1/E1+L5 bands
Output modes	Soft‑through and anti‑jamming modes, switchable via serial port

Anti‑Jamming Performance

Parameter	Specification	Notes
Channel configuration	Dual 16‑channel (two 16‑channel bands)	B1/L1/E1 + L2 or B1/L1/E1 + L5
Jamming types supported	Wideband, sweep, pulse jamming and combinations	Dual‑band protection
Simultaneous jammers	1–15 jamming sources from different directions	On dual bands
Single‑direction jamming	SIR ≥ 105 dB @ –130 dBm	High protection margin
Three‑direction jamming	SIR ≥ 95 dB @ –130 dBm	Multi‑source resilience
Fifteen‑direction jamming	SIR ≥ 80 dB @ –130 dBm	Extreme scenario support
Spatial coverage	Azimuth 0°–360°, elevation –90° to +90°	Full‑sky protection

RF & Receiver Specifications

Parameter	Specification	Notes
RF output power	–60 dBm to –70 dBm	Per band
RF impedance	50 Ω	Standard GNSS input
VSWR	≤ 2.0	Good matching
Built‑in receiver bands	B1/L1/E1 + L2 or B1/L1/E1 + L5	Dual‑band processing
Static position accuracy	Horizontal ≤ 7 m, altitude ≤ 9 m (95%, PDOP ≤ 4)	After anti‑jamming processing
Static speed accuracy	≤ 0.2 m/s (95%)	Stable velocity output
Burn‑out resistance	≥ 10 W at antenna front‑end	High RF robustness

Power & Interfaces

Parameter	Specification	Notes
Operating voltage	9–36 V DC (nominal 12 V)	System power bus friendly
Voltage ripple	≤ 100 mV	Clean supply requirement
Average power consumption	≤ 50 W	Dual‑band processing
Power/data connector	J30J‑15ZKP, 15‑pin	Power + RS422 + dual RS232
RS422 signals	RX+/–, TX+/–	Data/control channel
RS232 signals	Two RX/TX pairs, TTL optional	Configuration & PVT output
RF connectors	2 × SMA‑K	RF outputs for each band
RF output description	–60 dBm to –70 dBm, up‑converted RF after anti‑jamming	Per SMA‑K port

Mechanical & Environmental

Parameter	Specification	Notes

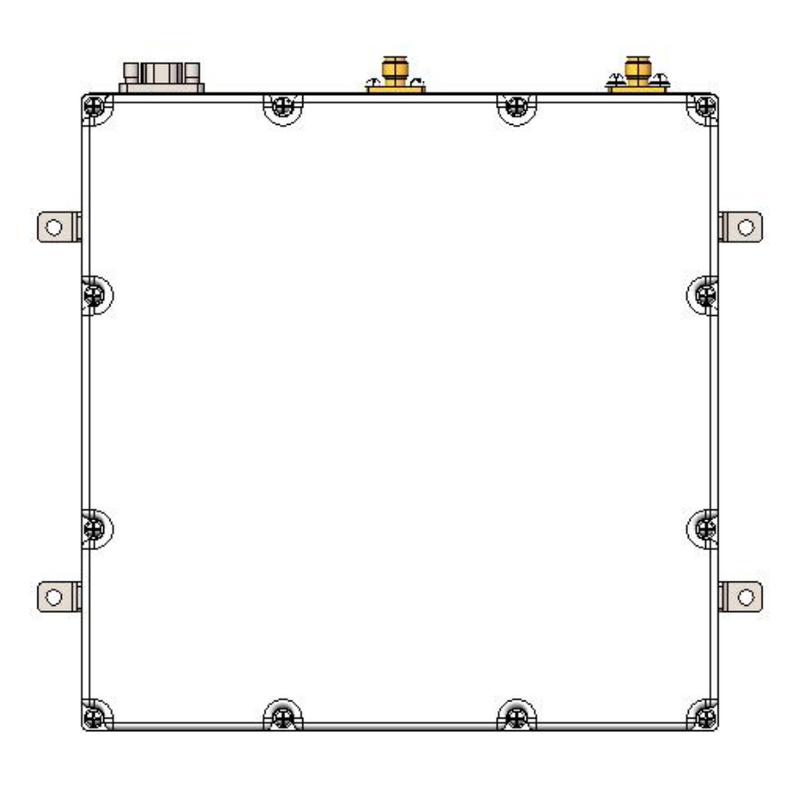

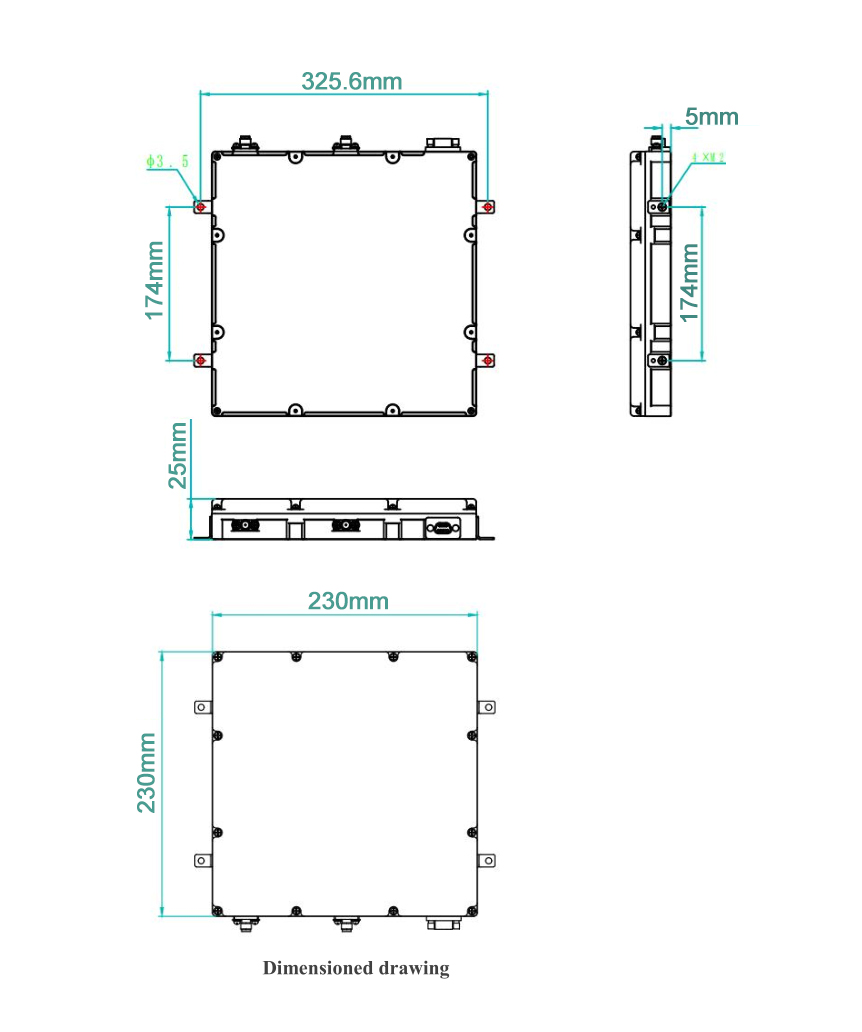

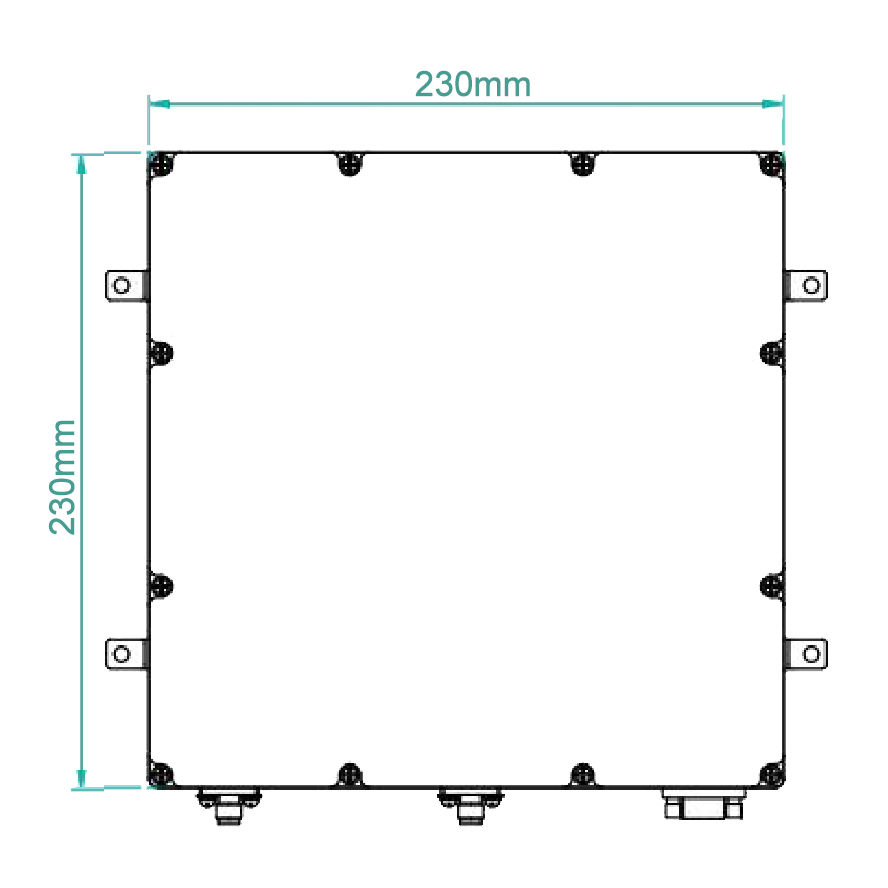

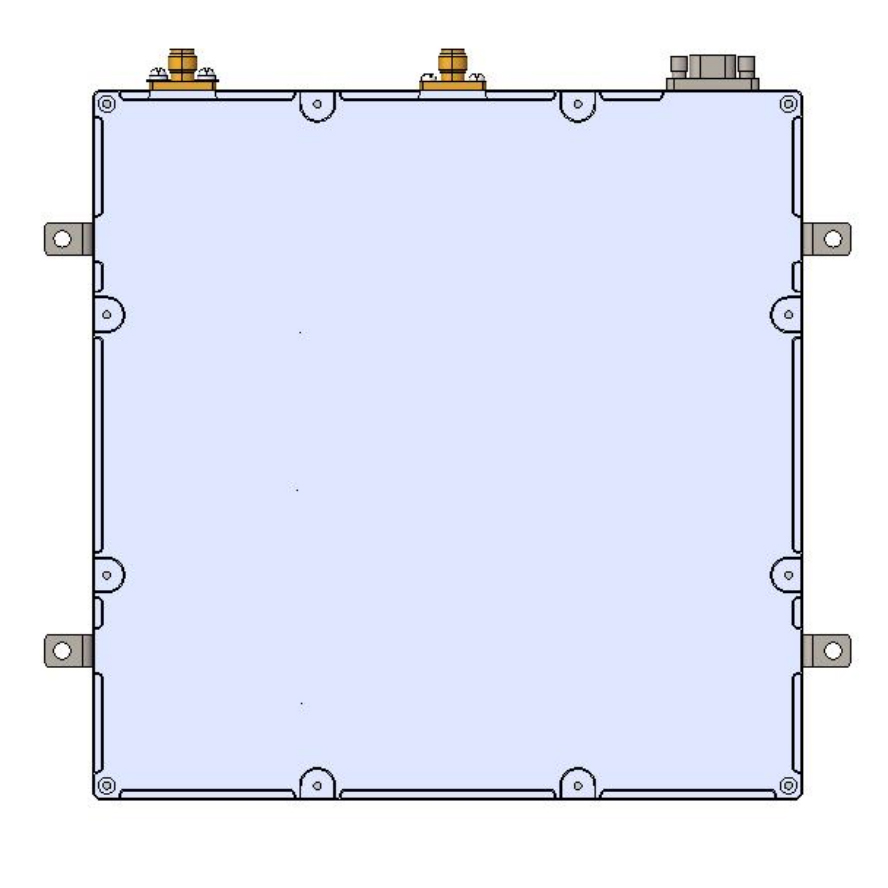

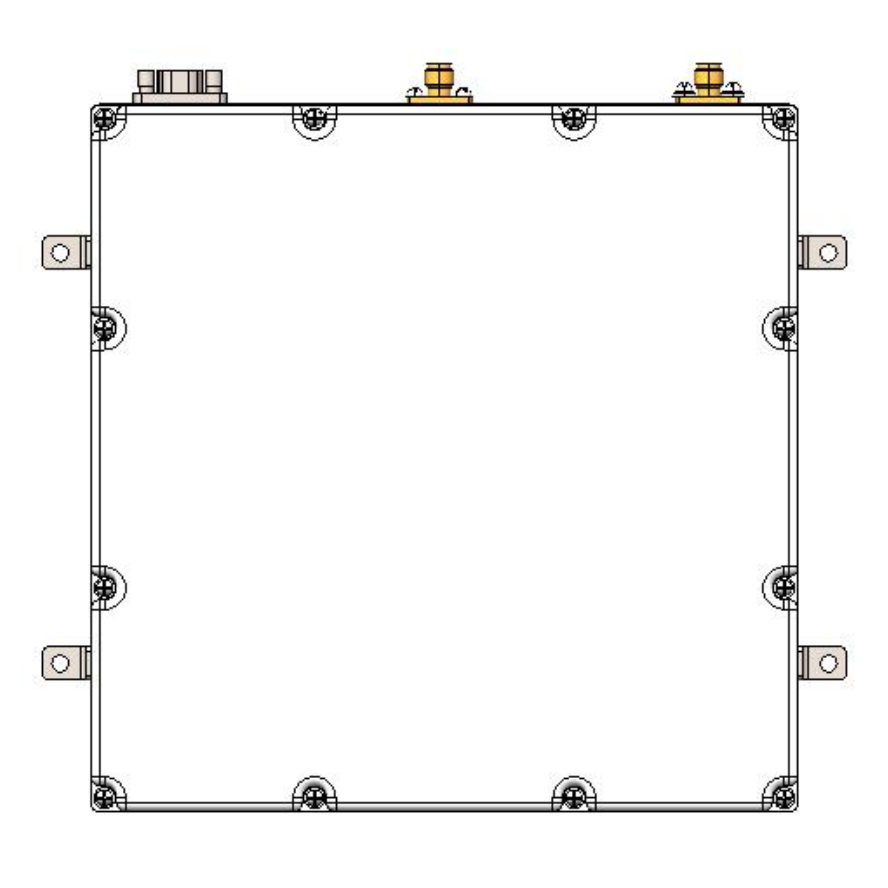

Dimensions	230.0 mm × 230.0 mm, height ≤ 25 mm (±0.5 mm)	Flat, low‑profile module
Weight	≤ 1.5 kg	Without cables
Housing color	Natural aluminum, conductive oxidation, silver‑grey/white	EMI‑friendly finish
Mounting interfaces	4 × M3 bottom screw holes (depth 5.5 mm), 4 × M2.5 side screw holes (depth 5.5 mm)	Flexible mounting
Labeling	Nameplate with product name, model, serial, frequency, production date, etc.	Asset management
Appearance	Clean, no deformation, rust, mildew, dirt, peeling, scratches or burrs	Quality requirement
MTBF	≥ 2000 h	High reliability
Continuous operation	≥ 24 h	Endurance test
Operating temperature	–45 °C to +70 °C, 10–90% RH (non‑condensing)	Harsh environments
Storage temperature	–50 °C to +90 °C, 10–95% RH (non‑condensing)	Long‑term storage
Waterproof rating	At least IP65	Outdoor deployment
Shock & vibration	Tested per GB/T 38924.5‑2020 shock and vibration standards for civil light UAV systems	UAV‑class robustness

Package Contents

Item	Quantity	Notes
230×230 mm dual 16‑element anti‑jamming antenna	1	Main unit
Debugging test cable (J30J‑15ZKP adapter)	Optional	60 cm, J30J to DC2.5 + DB9 (RS422, 2 × RS232)
Mounting screws	1 set	5–6 screws per set

Typical Applications

Tactical and industrial UAVs requiring dual‑band GNSS (L1/L2 or L1/L5) with strong anti‑jamming capability for BVLOS missions, mapping, inspection and security operations.
Manned aircraft and rotorcraft using multi‑band GNSS for navigation and PNT backup in interference‑prone regions.
Military and law‑enforcement vehicles where assured PNT is critical for command, control and situational awareness.
Maritime and offshore platforms needing resilient GNSS across multiple bands for navigation and dynamic positioning.
Critical infrastructure sites (communications, energy, transport hubs) that require dual‑band GNSS timing with enhanced resistance to jamming.
