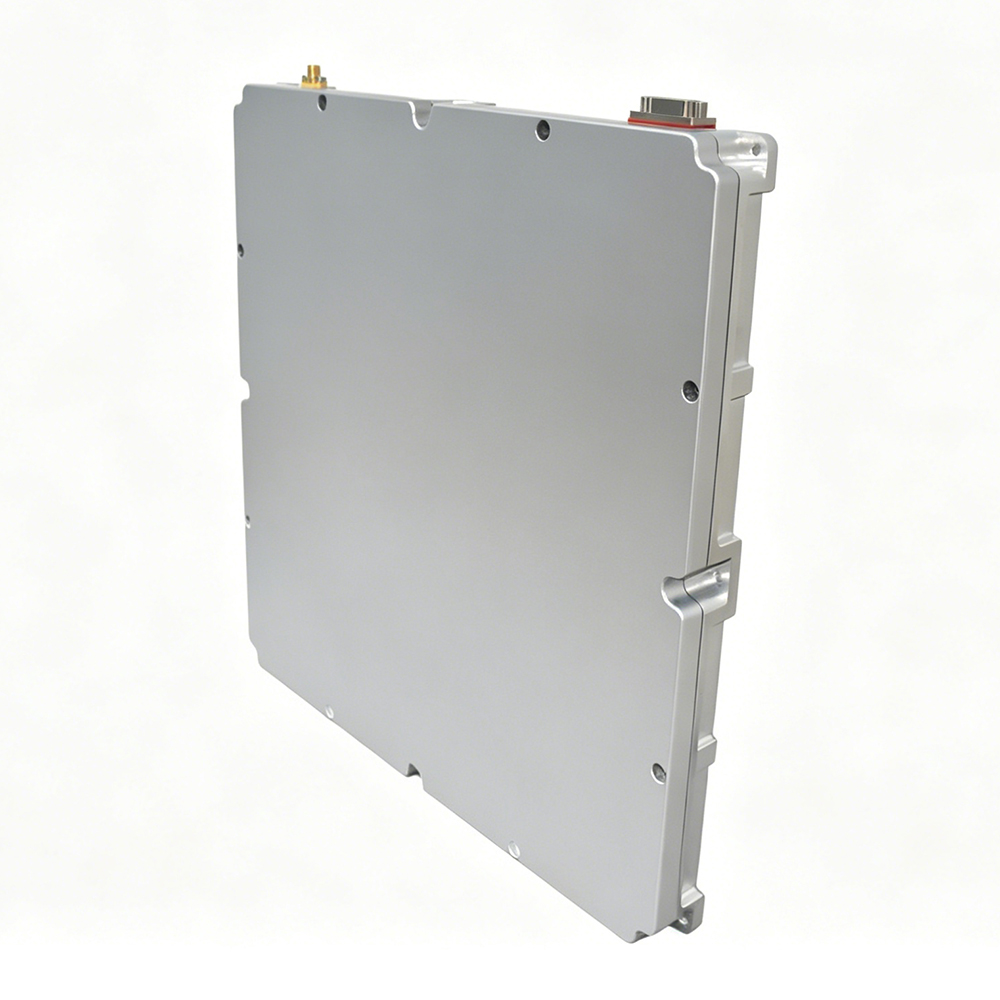

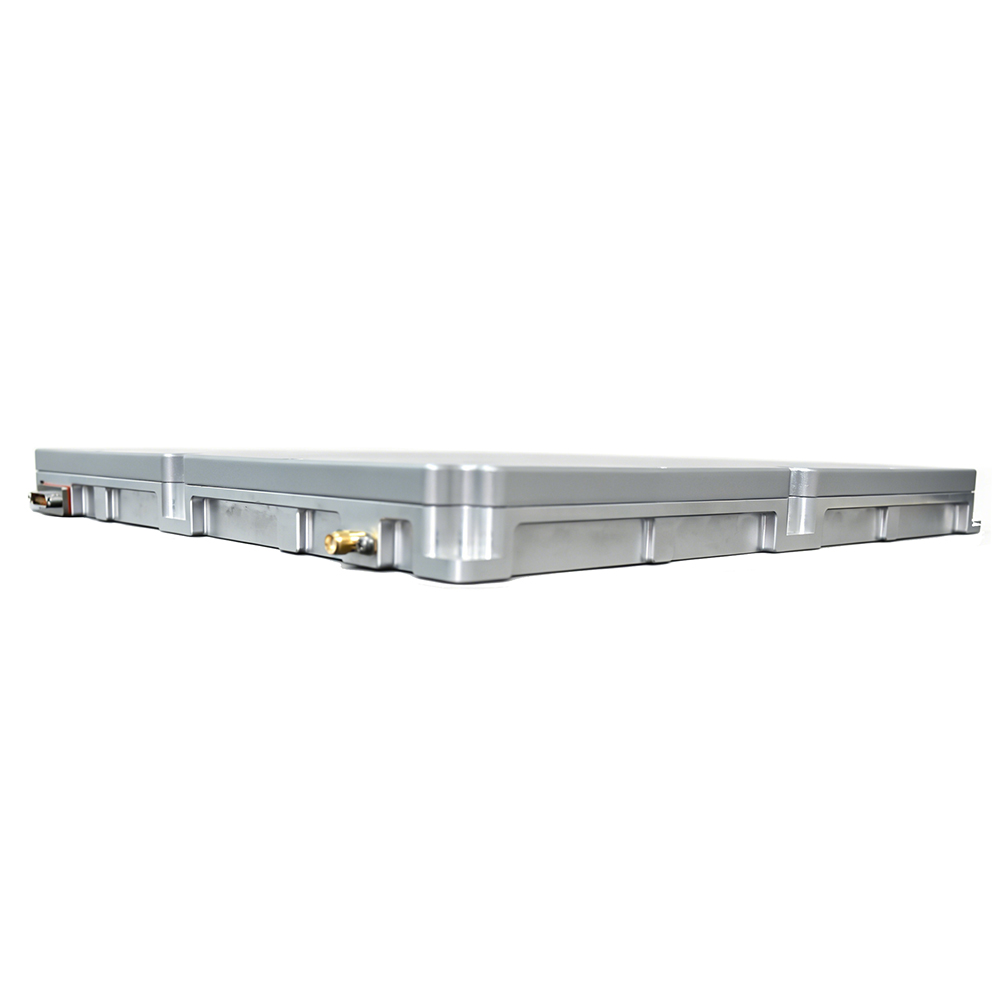

X300D Dual Sixteen‑element GNSS Anti‑Jamming Antenna for Drones, Mapping And Marine Use

AJU‑X300D is a dual sixteen‑element integrated GNSS anti‑jamming antenna unit designed for civilian and commercial platforms that require stable satellite navigation in complex signal environments. It enhances useful signals from BDS B1, GPS L1+L5 and Galileo E1 while suppressing interference, helping industrial UAVs, agricultural drones, autonomous ground vehicles, mobile mapping systems, marine navigation and robotics maintain reliable position, velocity and timing.

Product overview

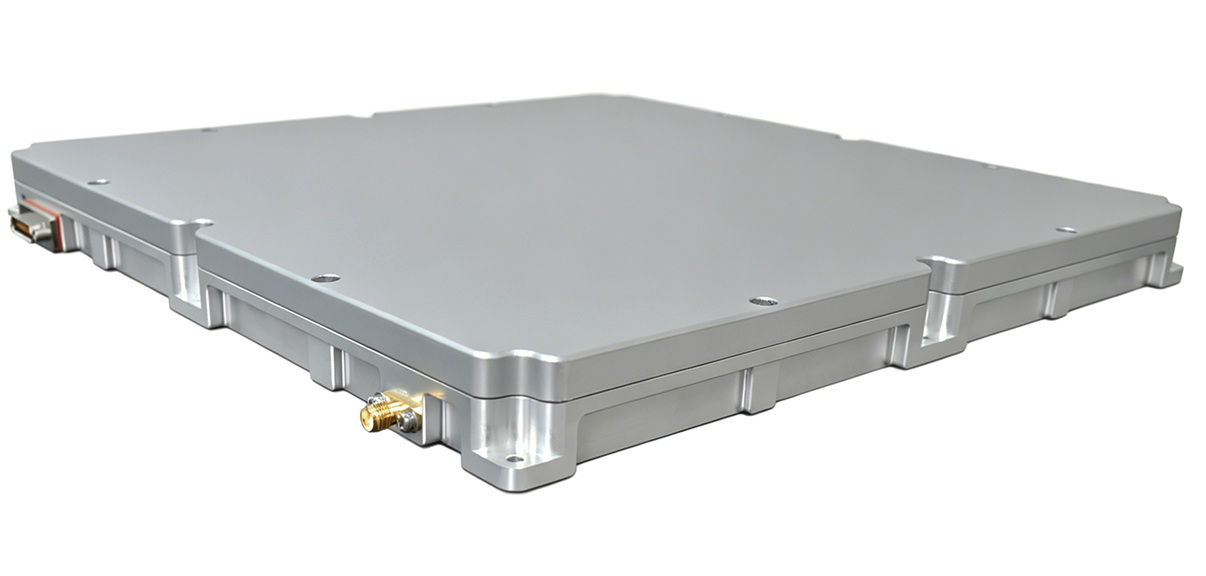

The AJU‑X300D combines a dual sixteen‑element array antenna, anti‑jamming processing electronics, an optional built‑in GNSS receiver and interface cabling in one low‑profile module. It performs reception, amplification, down‑conversion, filtering, adaptive interference mitigation and up‑conversion for 16 channels, then provides either processed RF output or PVT data for downstream systems.

This GNSS anti‑jamming antenna is intended for lawful civilian and commercial use in environments with high electromagnetic noise, dense infrastructure or accidental interference that could otherwise reduce navigation quality. Typical applications include industrial UAV missions, precision agriculture, unmanned ground vehicles, mobile mapping platforms, marine navigation systems, robotic equipment and other autonomous systems that rely on accurate GNSS information.

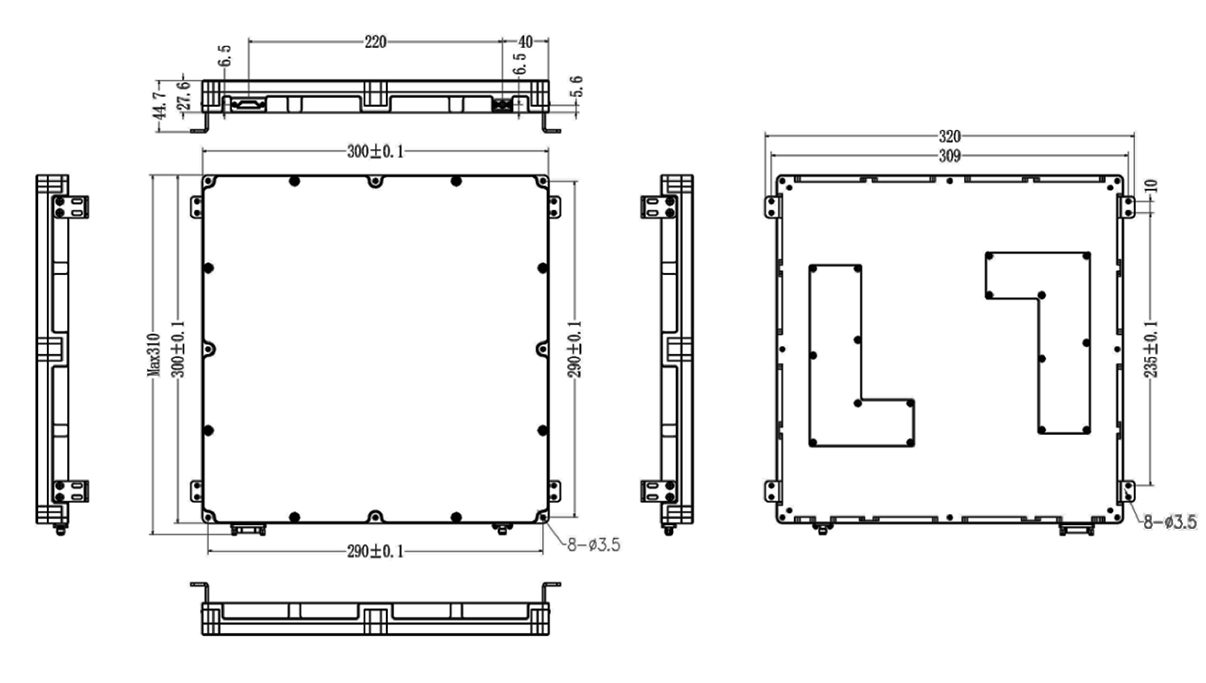

Figure 2-1 Dimensions Drawing of Dual Sixteen-Element Array Anti-Jamming Unit (unit:mm)

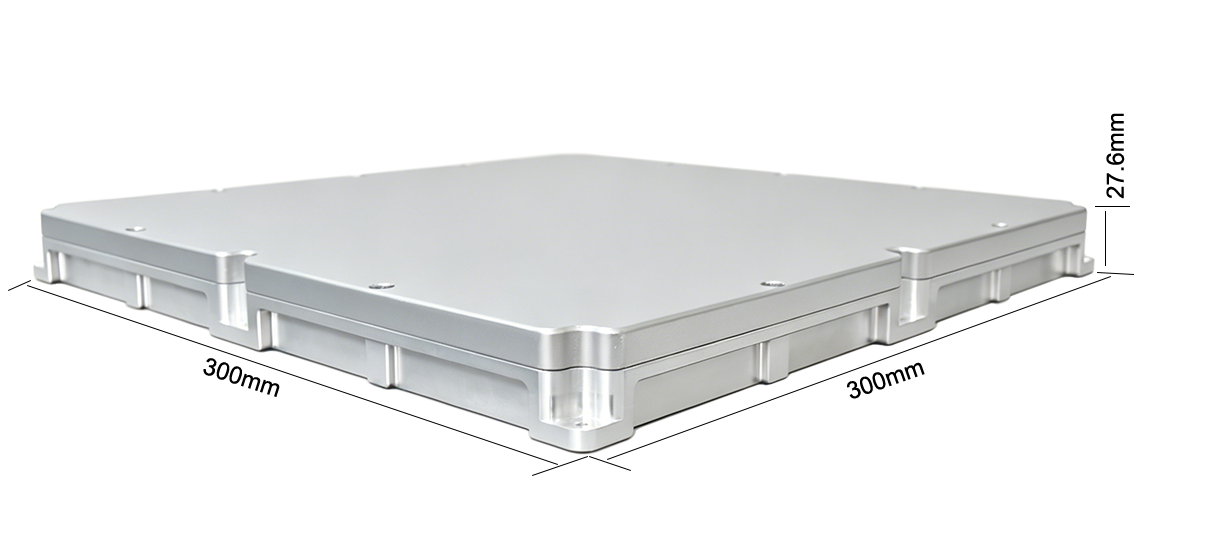

Figure 2-2 Dimensions Picture of Dual Sixteen-Element Array Anti-Jamming Unit (unit:mm)

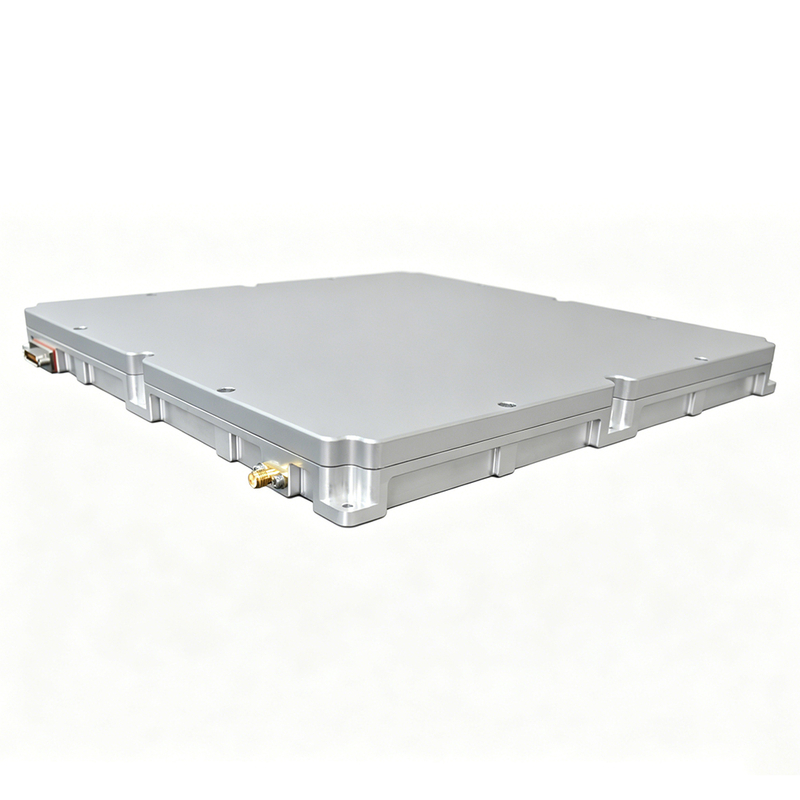

Key features

• Dual sixteen‑element GNSS array for advanced spatial interference suppression and improved signal quality.

• Supports 16‑channel BDS B1, Galileo E1 and GPS L1+L5 signal processing.

• Designed to resist broadband, narrowband, pulse, sweep and other suppression interference types, including mixed scenarios.

• Handles 1–15 interference sources arriving from different directions, helping maintain navigation where standard antennas lose lock.

• Built‑in receiver option provides PVT output after anti‑jamming processing for easier integration with flight controllers and navigation computers.

• Wide DC 24–36 V power input and overhead‑mount friendly mechanical design suited to many civilian platforms.

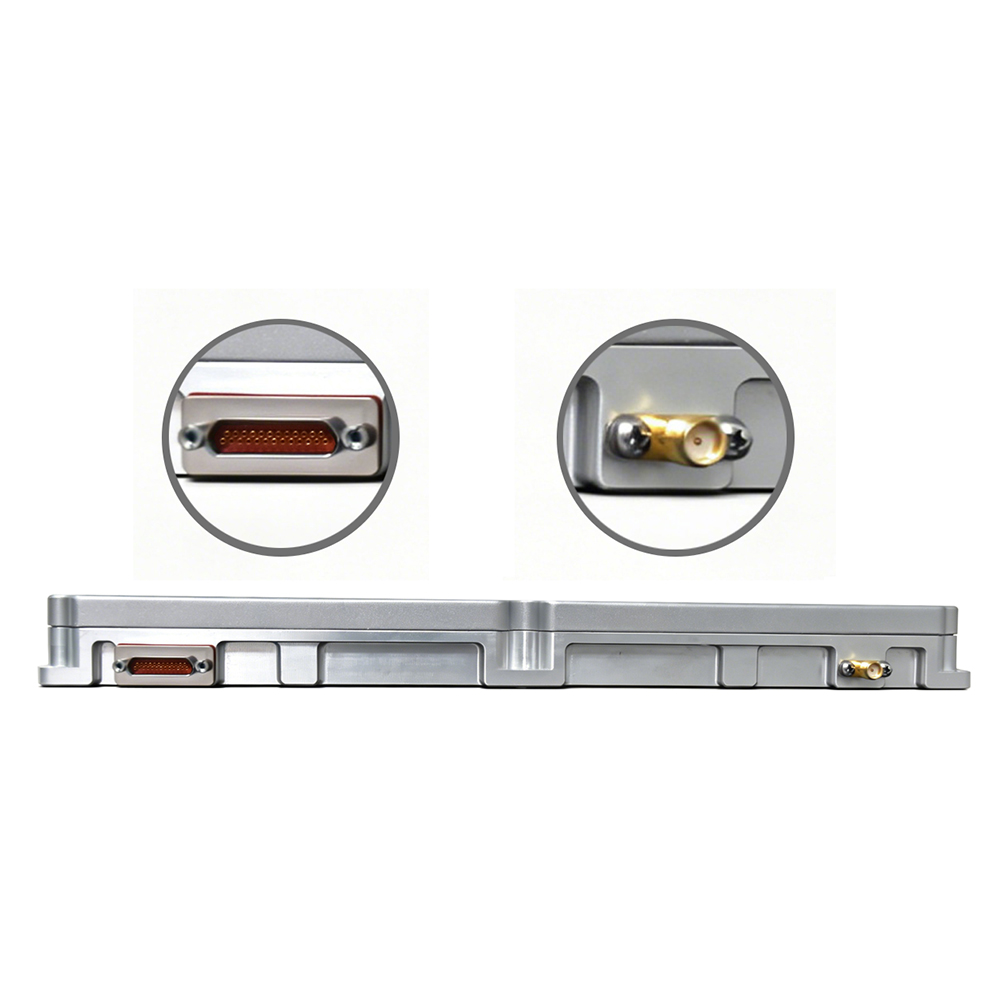

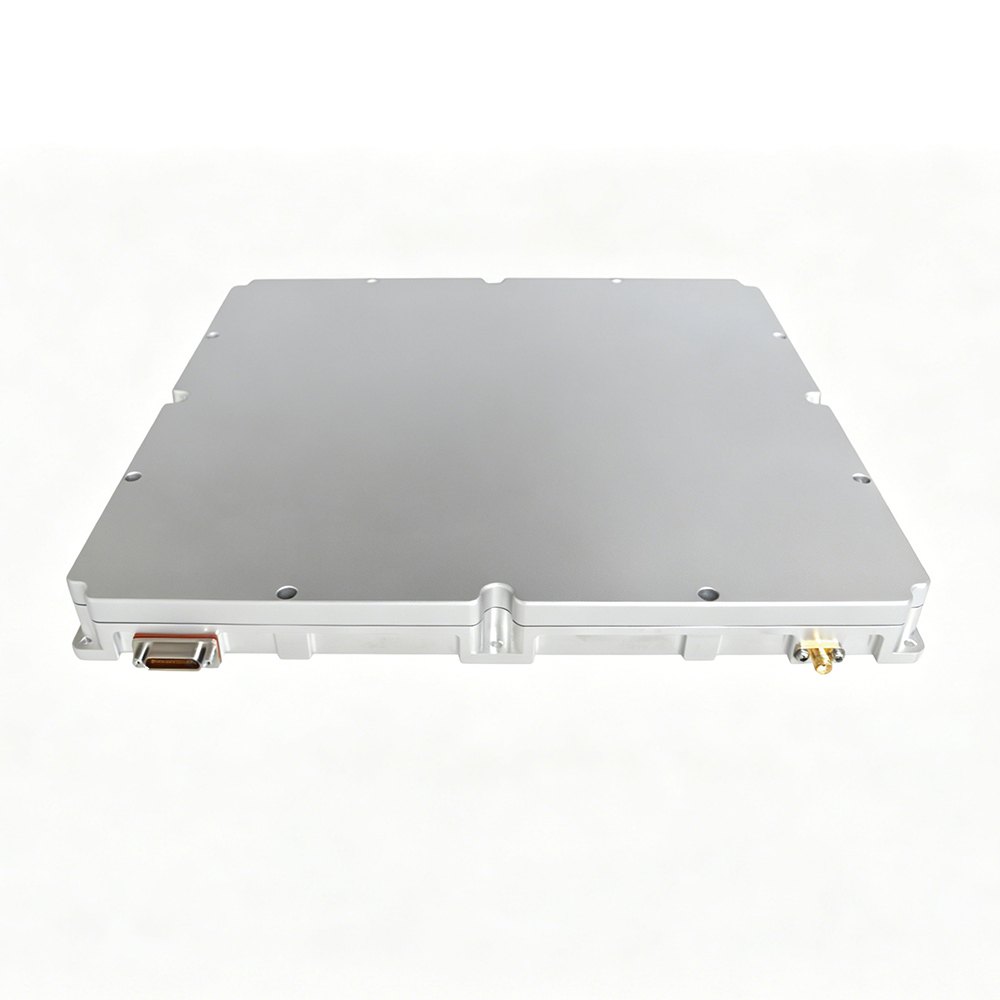

• J30J‑25ZKP power/data connector and SMA‑K RF connector for straightforward electrical integration.

• Rugged design with IP65 or higher waterproof rating and wide operating temperature for outdoor use.

Technical specifications

GNSS & anti-jamming performance

RF output and receiver

Electrical & interface data

J30J‑25ZKP power & data pinout (LVTTL 3.3 V)

Mechanical & environmental specifications

Structure

Environment & reliability

Installation & packaging

The antenna is supplied in paper packaging with internal shock‑absorbing and drop‑resistant buffering for transport protection. During installation, the long sides of the mounting brackets are fixed to both sides of the antenna body with the supplied screws, then the assembly is mounted to the platform through bracket holes and all screws are evenly tightened for vibration resistance.

The bottom surface is a metal heat‑dissipation area and should be installed overhead or with good airflow to maintain proper cooling. The top surface is the GNSS receiving plane and must face open sky without obstruction; if used inside a body, the material above must be wave‑transmitting with at least 92% L‑band transmission.

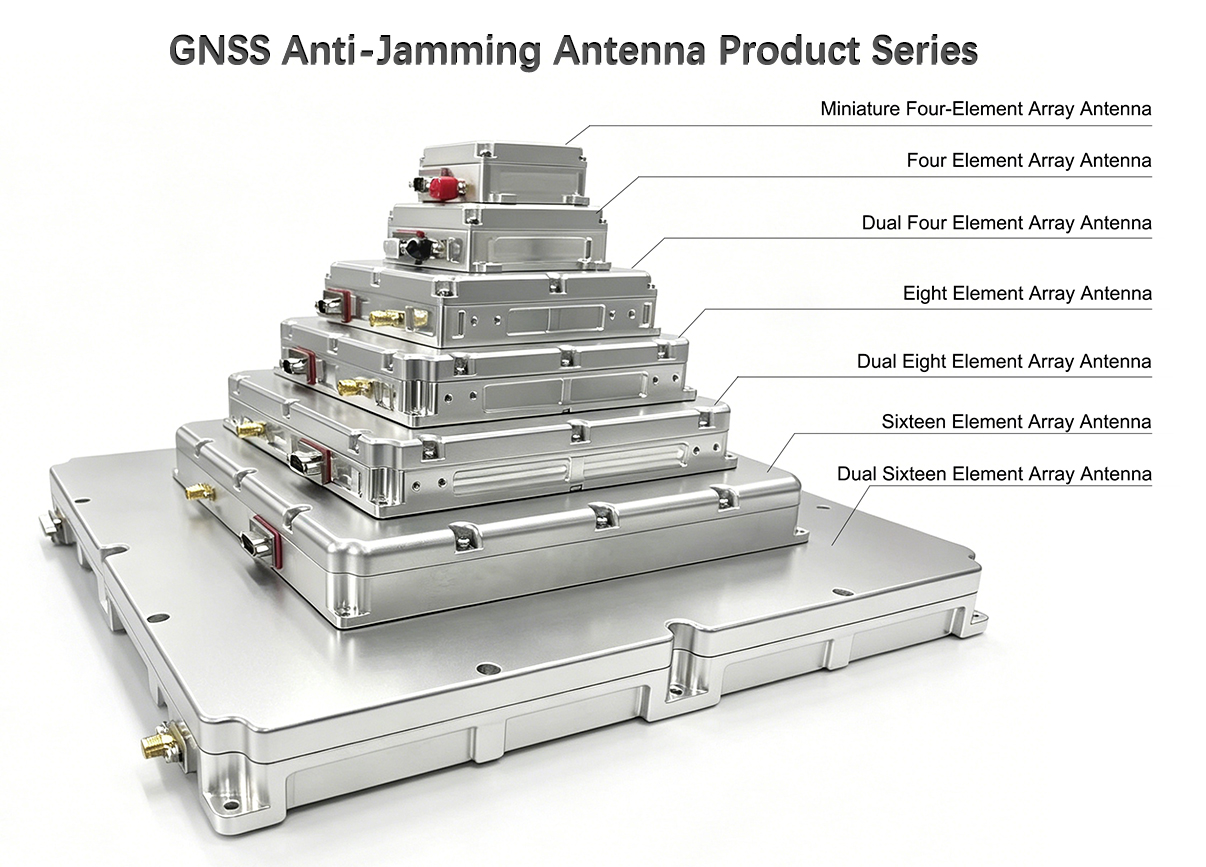

We also offer a range of civilian GNSS anti-jamming antennas, including single four‑element, dual four‑element, single eight‑element, dual eight‑element and sixteen‑element array models.
If you are interested in technical discussions or product cooperation, please feel free to contact us at any time.
